Can 318-Y H05VV-F Flexible Cable Be Applied in Wet Indoor Environments?

Yes, 318-Y / H05VV-F flexible cable can be applied in damp or wet indoor environments (such as domestic kitchens, bathrooms, and laundries), provided it is not subjected to permanent water immersion or high-pressure water jets. Manufactured to [1](formerly BS 6500) and IEC 60227, 318-Y cable features [2]fine-stranded plain copper conductors, PVC insulation, and a PVC outer sheath rated for 300/500V. While its non-hygroscopic Polyvinyl Chloride (PVC) compound resists ambient humidity and splash moisture, prolonged submersion or dynamic outdoor wet exposure degrades standard PVC, requiring EPR/Neoprene rubber-sheathed alternatives like H07RN-F.

Technical Parameter & Environmental Suitability Matrix

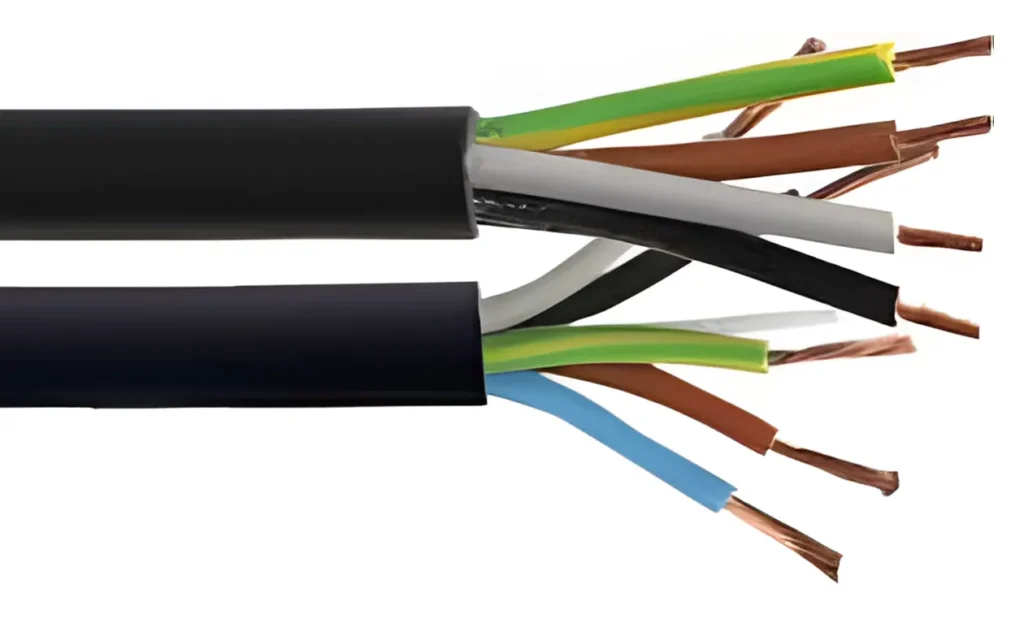

Structural Specification of 318-Y (H05VV-F) Cable

The CENELEC harmonized designation system outlines the precise material layers of the 318-Y / H05VV-F power cordage:

• H: European Harmonized Standard compliant (BS EN 50525-2-11).
• 05: Voltage rating of 300V phase-to-ground / 500V phase-to-phase ($U_0/U$).
• V: PVC (Polyvinyl Chloride) conductor insulation.
• V: PVC (Polyvinyl Chloride) overall protective outer jacket.
• -F: Class 5 Flexible Conductor, comprising fine annealed copper wires for high bend fatigue resistance.

Performance Factors in Wet & Damp Indoor Installation

1. Water Ingress and PVC Hygroscopic Limitations

Standard PVC (Type TM2) sheathing exhibits low water absorption under occasional splashes or high relative humidity ($\ge 85\%$). However, standard PVC is not non-hygroscopic under hydraulic pressure. Continuous water pooling around the cable induces slow moisture migration through the outer sheath, reducing insulation resistance ($M\Omega\cdot\text{km}$) over time and risking Earth Leakage Circuit Breaker (ELCB/RCD) trips.

2. Permitted Wet Indoor Scenarios

318-Y H05VV-F is approved under [3]for medium-duty flexible connections in:

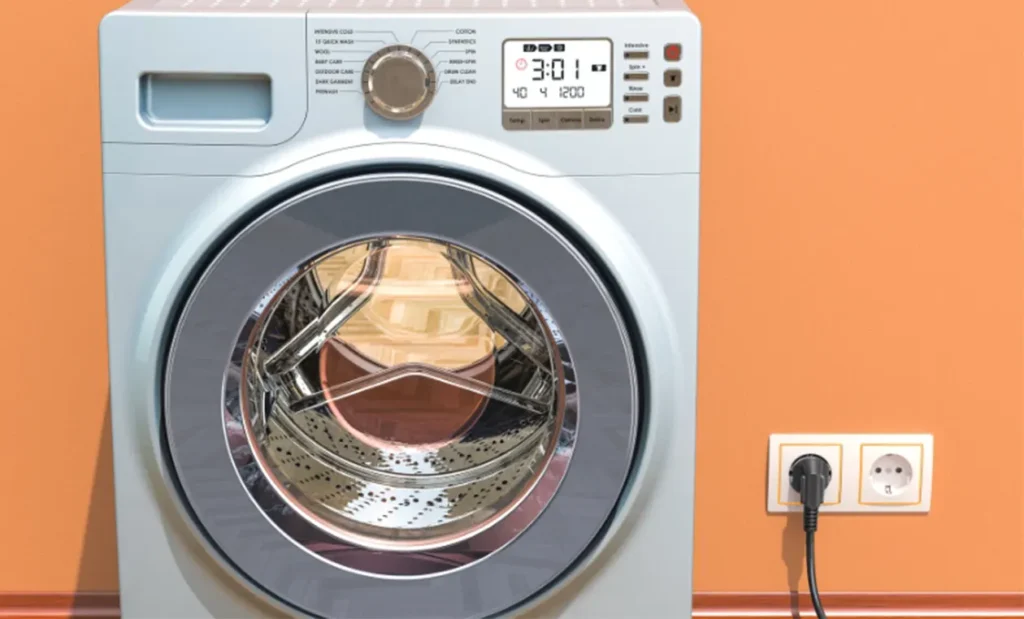

• Domestic Appliances: Washing machines, tumble dryers, refrigerators, and spin dryers in utility rooms.
• Commercial Kitchen Equipment: Portable food preparation units and processing appliances subject to mild surface washdowns.
• Bathroom & Sanitary Equipment: Fixed connections for towel rails, water heaters, and extractor fans located in Zone 2 or Zone 3 areas (outside direct spray zones).

3. Prohibited Applications and Upgrade Alternatives

• No Continuous Submersion: Cannot be installed inside water tanks, sumps, or drainage channels.
• No Direct Outdoor Exposure: Standard PVC degrades under prolonged UV solar radiation and sub-zero frost conditions ($\le -5^\circ\text{C}$).
• Heavy Industrial Wet Zones: For wet industrial processing, washdown bays using high-pressure steam, or outdoor mobile connections, upgrade to H07RN-F (EPR/Neoprene rubber) or H07BQ-F (Polyurethane/PUR) jacketed cables.

CJDL CABLE Engineering Insight

318-Y H05VV-F is a sound choice for splash-resistant indoor connections in domestic and commercial settings when installed per BS 7671. For permanent submersion or high-pressure washdown zones, our engineering team recommends upgrading to H07RN-F. All 318-Y flexible cables supplied by CJDL CABLE are manufactured and routinely tested to BS EN 50525-2-11 and IEC 60227.
