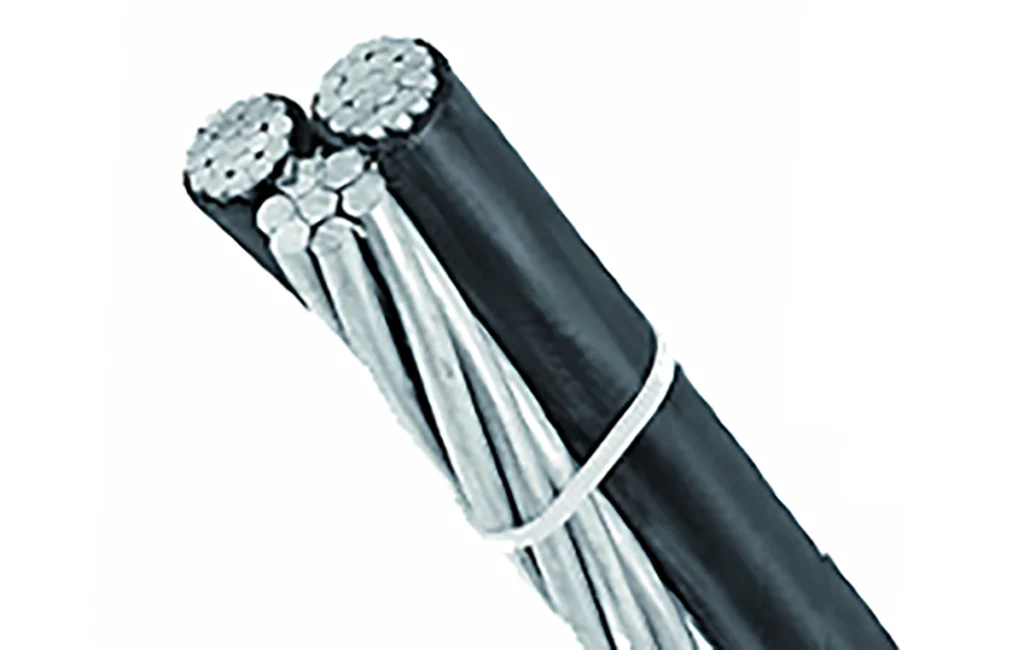

ABC cable bundles multiple insulated conductors under a single weatherproof jacket, offering neater installations, reduced corona losses at low to medium voltages, improved safety, easier maintenance, and cost efficiencies in urban or constrained environments.

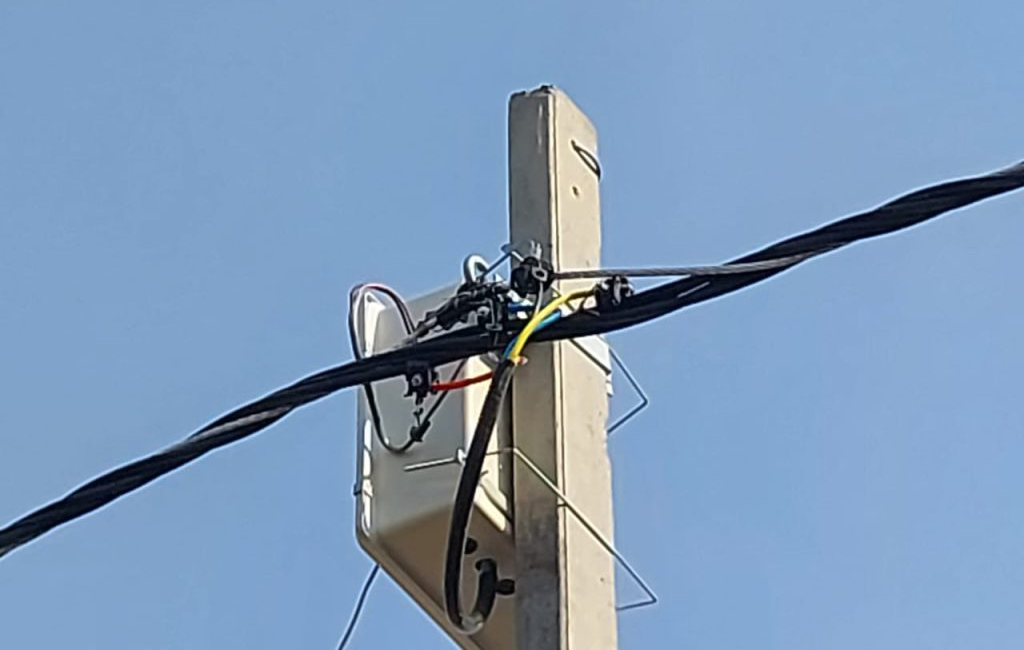

In urban and suburban distributions, ABC simplifies pole-top and street routing by consolidating several conductors into one protected unit. The insulated bundle minimizes corona losses and arcing, while the outer jacket provides moisture, UV, and abrasion resistance. The compact footprint reduces street clutter and makes fault localization faster due to a more organized conductor layout. Selection factors include voltage level, bundle size, insulation type (commonly XLPE), and the jacket’s environmental protection. While ABC can lower installation complexity and maintenance in many cases, it may not be the optimal solution for very high-voltage transmission, where conventional or other insulated systems are preferred.
Key Advantages of ABC Cable:
- Neater installations and reduced street clutter in urban networks
- Lower corona losses and improved fault localization at lower to medium voltages
- Enhanced safety due to insulated, weatherproof bundle
- Simplified installation with fewer insulators and hardware
- Environmental protection from UV, moisture, and abrasion
- Flexible bundle configurations (tri-, quad-core) for capacity and routing
Applications and Design Considerations:
- Environment: urban distribution, campuses, and areas with space constraints
- Electrical needs: voltage level, current, and shielding requirements
- Installation: pole spacing, routing, and compatibility with spacers and clamps
- Maintenance: ease of inspection and accessibility for fault finding
- Standards and documentation: third-party tests, certifications, and batch traceability
