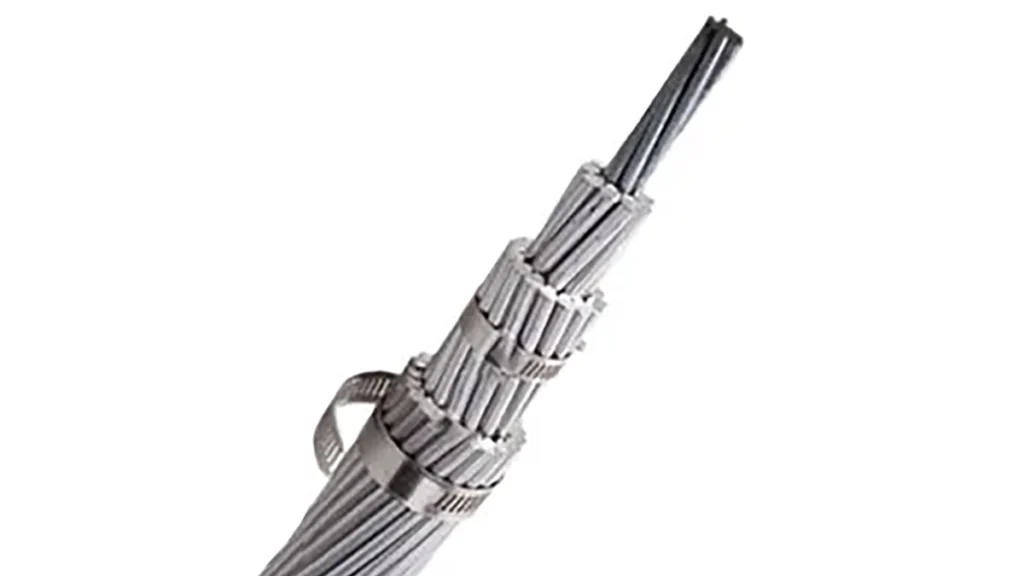

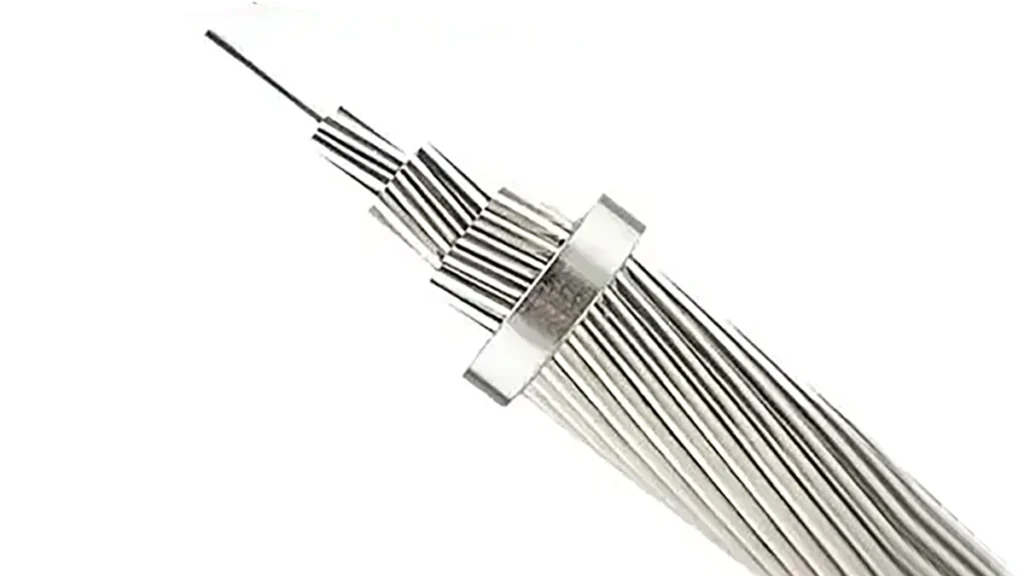

ACSR combines a high-strength steel core with aluminum strands to deliver superb tensile strength while keeping weight relatively low. This enables long-span transmission with manageable sag, cost efficiency, and good weather resistance, making ACSR ideal for overhead power lines in rugged terrain and large-scale distribution networks.
The steel core provides the primary structural strength, allowing towers to span long distances without excessive sag. The aluminum strands carry the electrical current, offering good conductivity and corrosion resistance. The balance between the steel and aluminum components can be tuned by strand count and alloy choice to optimize strength, weight, and voltage performance for specific applications. While ACSR is cost-effective and widely available, its electrical conductivity is lower than copper, so accurate sag and thermal ratings are critical for safe and efficient operation.
Key Advantages of ACSR:
- High tensile strength-to-weight ratio enables long spans with controlled sag
- Cost-effective for large-scale transmission due to abundant materials and straightforward manufacturing
- Good corrosion resistance of the aluminum strands, while steel cores provide durability
- Versatility across a range of voltages and environmental conditions
- Compatibility with common transmission hardware and standard installation practices
- Availability in various alloy and strand configurations to balance strength and conductivity
Applications and Installation Considerations:
- Environment and terrain: ideal for long aerial routes in mountains, deserts, or remote areas where direct burial is impractical
- Sag and tension: requires careful engineering to meet clearance requirements and load conditions
- Electrical design: voltage level, current capacity, and conductor sizing influence performance
- Thermal performance: temperature swings and wind cooling affect sag and efficiency
- Installation and maintenance: standard poles/towers, hardware, and routine inspection for corrosion or wear
