Core Application Scenarios of BS 7870 ABC

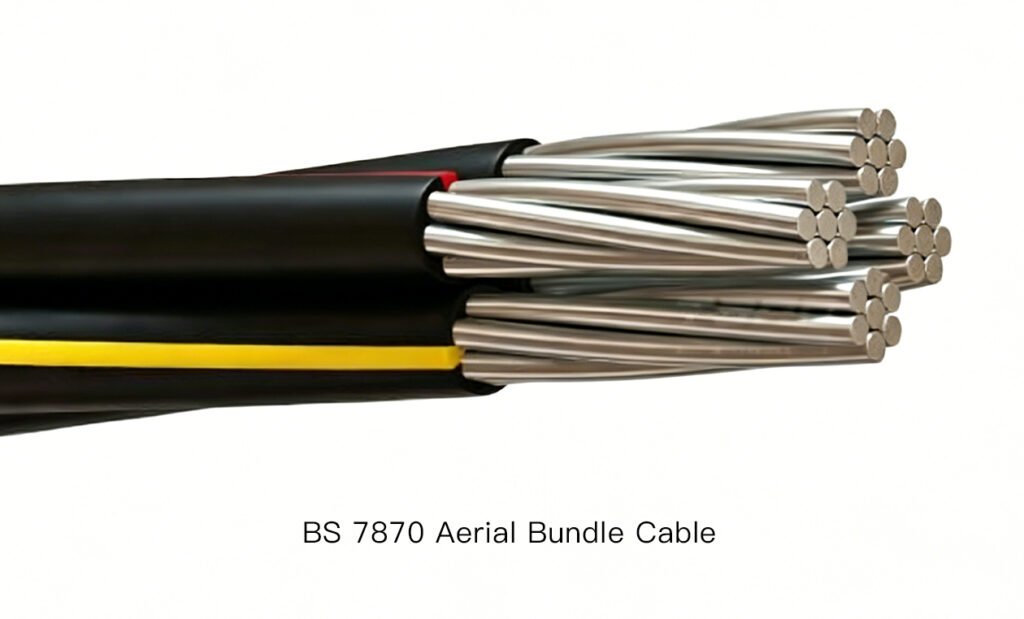

BS 7870 ABC (Aerial Bundled Cable) is engineered primarily for low-voltage (0.6/1 kV) overhead electricity distribution networks. Because it complies with strict British Standards, its deployment scenarios focus on replacing hazardous bare overhead conductors with a fully insulated, self-supporting bundle. It is heavily utilized by electrical utilities, rural electrification boards, and industrial civil engineers to balance mechanical reliability with high electrical safety.
Technical Performance Matrix by Deployment Environment
The following matrix maps the mechanical and electrical properties of BS 7870 ABC to specific environmental challenges:
| Application Environment | Primary Challenge | Cable Property Solved By | Operational Benefit |
| Densely Populated Urban Areas | Narrow Right-of-Way (RoW) & accidental contact risks | Fully insulated XLPE jacket with zero phase-to-phase clearance requirements | Safe installation close to building facades and balconies; zero flashover risk. |
| Forested & High-Vegetation Zones | Falling branches causing short circuits and wildfires | High-dielectric insulation and tough abrasion-resistant outer skin | Eliminates transient faults from tree contact; significantly reduces tree-trimming costs. |
| High-Solar / Coastal Regions | UV degradation and galvanic salt-spray corrosion | ≥2.0% Carbon Black compounding and covered aluminum design | Prevents insulation embrittlement and eliminates atmospheric core corrosion. |
| High-Theft Public Grids | Illegal direct line tapping (power theft) | Tightly twisted, un-strippable bundled configuration | Maximizes revenue protection; requires specialized IPCs that make theft highly visible. |
Detailed Application Breakdowns

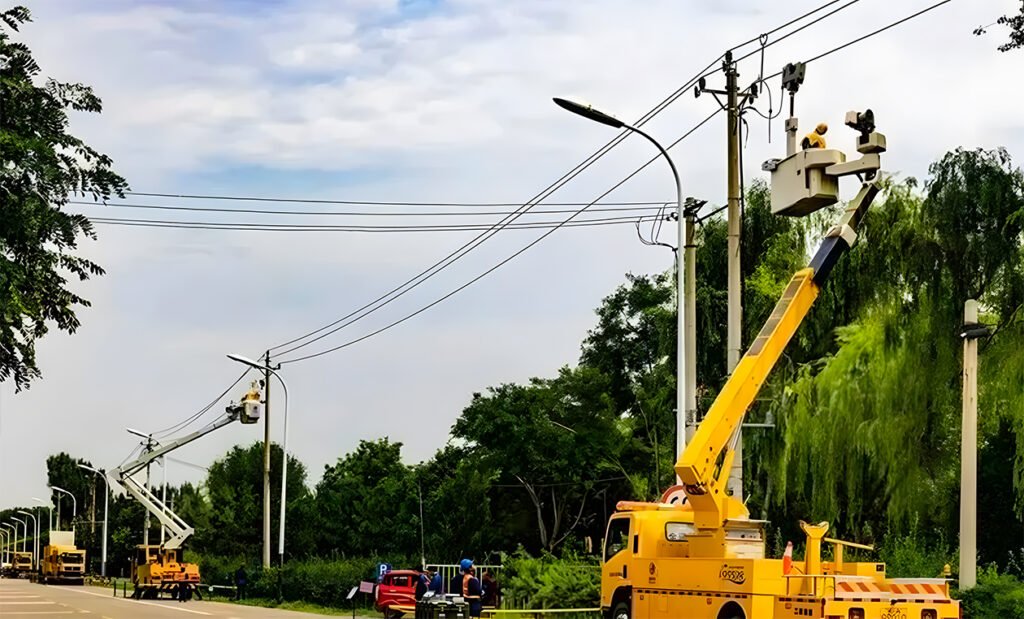

1. Urban Network Upgrades and Retrofitting
In older metropolitan sectors, upgrading power capacity using bare conductors is frequently impossible due to building encroachment. BS 7870 ABC allows utilities to run multiple circuits on a single pole line or fix the cable directly to building walls using specialized brackets. This eliminates the need for expensive underground trenching while maintaining a safe environment for residents working near the lines.

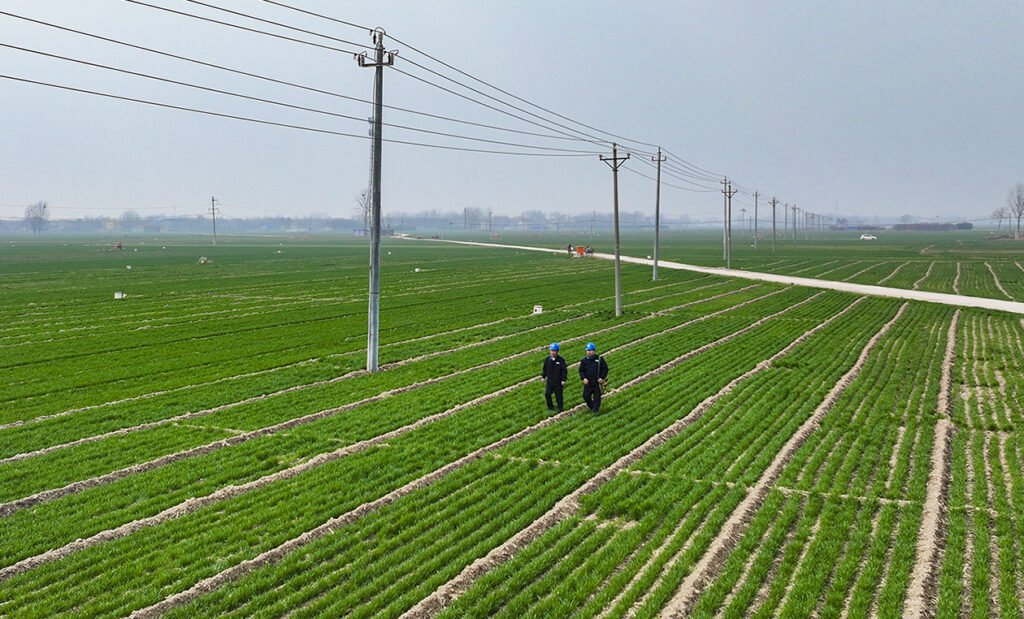

2. Rural Electrification and Remote Power Drops
For long-distance rural distribution lines passing through unpredictable terrain, budget constraints often limit heavy infrastructure. The lightweight, self-supporting design of the BS 7870 bundle allows for longer pole spans and lighter supporting hardware. If a tree branch or storm wind forces the cable to the ground, the 0.6/1kV insulation prevents earth faults and keeps the circuit live and safe until a maintenance crew arrives.

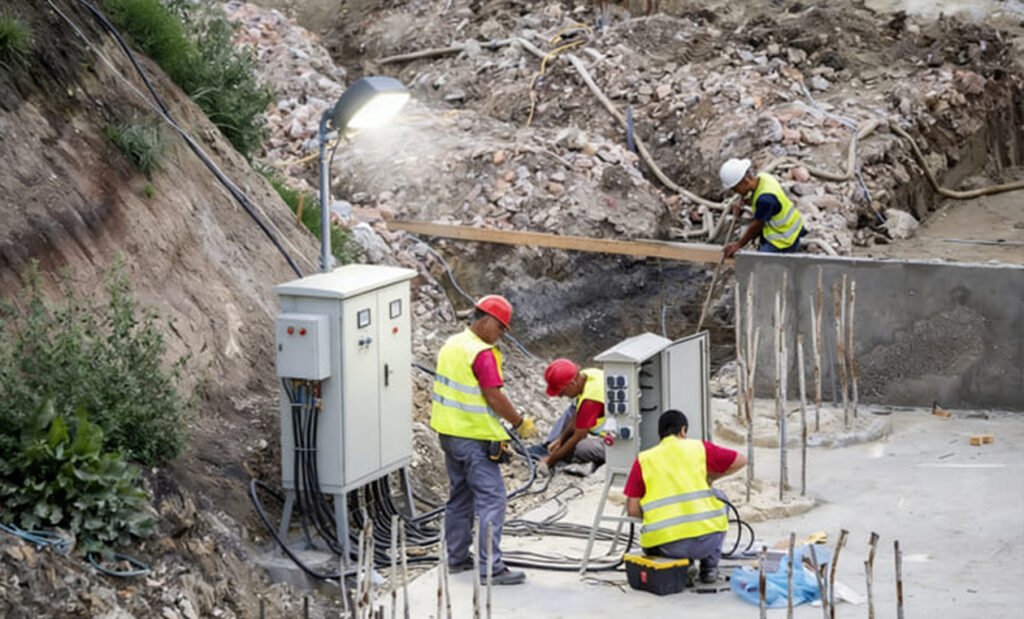

3. Temporary Power Distribution for Industrial and Construction Sites
Large-scale infrastructure projects (e.g., open-cast mining, major civil engineering works, temporary festival grids) require fast, safe, and relocatable power grids. BS 7870 ABC can be rapidly strung across temporary wood or steel poles. Its rugged XLPE jacket resists the harsh physical handling, dust, and mechanical vibrations typical of active heavy-industrial construction zones.
