What is your packing?

Hello,Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel wood, whole wood ,ect. We are using international standatd packing for different kinds ofcable, to ensure there will be no problem during

Which countries routinely use IEC cables?

Hello,(IEC) member countries cover more than 97% of the worlds population. The members are the national committees of the respective country, responsible for setting national standards and guidelines.

What's the quality assurance you can provide and how do you control the quality?

Hello,100% inspection on assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to confirm they consistently achieve the required quality levels.

What the out looking different of the Control cable and instrumentation cable?

Hello,The instrumentation cable core usual are pairing.Thanks.

NA2XRH Aluminium Conductor IEC 60502-1

The NA2XRH and NA2XRY are aluminium power cables with a voltage rating of 600/1000V designed to withstand harsh operating conditions and mechanical stresses.

Product Information

XLPE SWA LSZH 0.6/1kV Cable

Application: Multi-core LSZH cable with steel wire armour (SWA). Powerand auxiliary fixed wiring cables for use in power networks,underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
Suitability: For internal, external and underground installations including direct burial.
Standards & Voltage Rating: Generally to BS 6724, IEC 60502-1, EN 50267-2-1, EN 60228 Flame Retardant according to IEC/EN 60332-1-2, IEC/EN 60332-3-24 Low Smoke Zero Halogen according to IEC/EN 60754-1/2, IEC/EN 61034-1/2

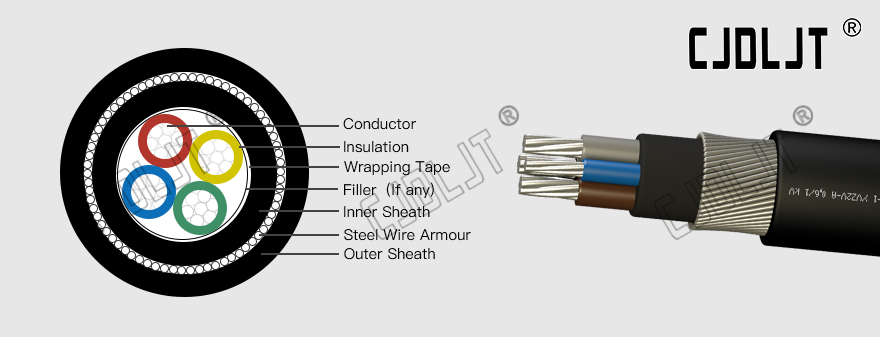

Construction: Conductor
Class 2 stranded aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
LSZH (Low Smoke Zero Halogen)
Armour
Single core: AWA (Aluminium wire armour)
All other sizes: SWA (Galvanized round steel wire)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
Black
Details: Broad range of sizes including 3-core with reduced earth. UV stable. CPR compliant. SWA provides mechanical protection from stresses and external environmental factors.

Specifications

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
