What is your packing?

Hello,Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel wood, whole wood ,ect. We are using international standatd packing for different kinds ofcable, to ensure there will be no problem during

Which countries routinely use IEC cables?

Hello,(IEC) member countries cover more than 97% of the worlds population. The members are the national committees of the respective country, responsible for setting national standards and guidelines.

What's the quality assurance you can provide and how do you control the quality?

Hello,100% inspection on assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to confirm they consistently achieve the required quality levels.

What the out looking different of the Control cable and instrumentation cable?

Hello,The instrumentation cable core usual are pairing.Thanks.

4 Core Aluminium Concentric Cable

600/1000V 4 core Aluminium Concentric Cable,aluminum concentric cable,4*10AWG Concentric Cable,3*10+1*10 concentric Cable , 4*16AWG. Aluminum alloy series 8000 concentric cable.round concentric cable

Product Information

Application:

Also suitable for sub distribution and particularly used within high-rise building and street lighting systems.These cables offer high resistance to aging,abrasion,moisture,chemicals,oils and acids and afford protection of phase conductors against external ingress.

Standard: NTP IEC 60502-1

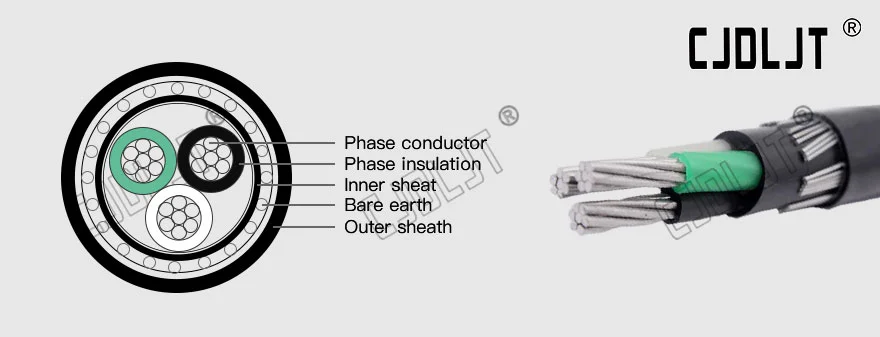

Construction:

1.Conductor: aluminum class 2
2.Insulation: LV-XLPE
3.Inner sheath: Extrude PVC
4.Outer Sheath: XLPE/PE/PVC
5.Phase Color Code(SNE): Red, Black & White
6.Phase Color Code (CNE): Black

Advantages:

1.100 IEC, ISO Standard Product. Factory direct sale
2.Fast delivery.
3.18 month guarantee period.
4.Sample free available.

Specifications

Cable Size	Conductor size (AAC)	Insulation thickness (XLPE)	Concentric conductor (AAAC 8000)	Outer sheath thickness (PVC)	Overall Diameter	Cable Mass
mm²	N/mm	mm	N/mm	mm	mm	kg/km
3*10/10	7/1.35	0.7	51/0.50	1.6	18.7	355.4
3*16/16	7/1.70	0.7	56/0.60	1.6	21.2	465.7

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.

4 Core Aluminium Concentric Cable

Product Information

Specifications

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
