4 Core Round Copper Concentric Cable

600/1000V Copper Concentric Cable,copper concentric cable,4*10AWG Concentric cable
Inquiry
9-1

Product Information

Application:

for use in aerial, direct burial,conduit,open tray and underground duct installation.It’s maximum temperature of operation is 70℃( PVC or PE insulation) or 90℃ (XLPE insulation) and it’s voltage of service for all the applications is 600V.

Standard: NTP IEC 60502-1 BS7870

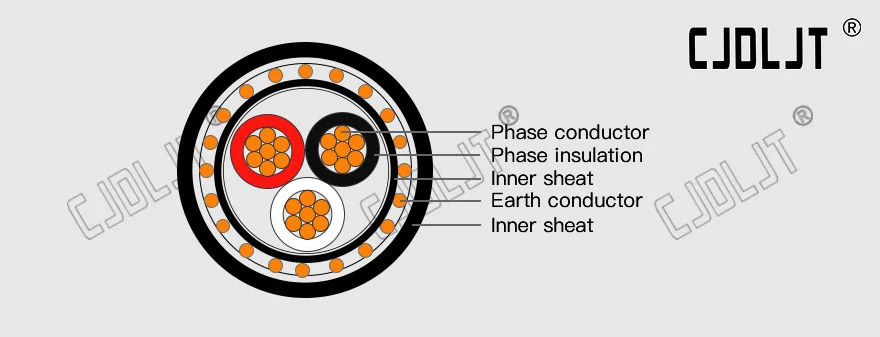

Construction:

1.Conductor: Copper class 2
2.Insulation: XLPE
3.Sheath: XLPE/PE/PVC
4.Phase Color Code(SNE): Red, Black & White
5.Phase Color Code (CNE): Black

Advantages:

1.Rich supply experience with best price.
2.18 month guarantee period.
3.Sample free available.

Specifications

Cable
Size

Conductor size
(AAC)

Insulation thickness
(XLPE)

Concentric conductor
(AAAC 8000)

Outer sheath thickness
(PVC)

Overall
Diameter

Cable
Mass

mm²

N/mm

mm

N/mm

mm

mm

kg/km

3*10/10

7/1.35

1.0

51/0.50

1.6

18.4

645



Service

  • PROJECT MANAGEMENT

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

  • CJDL CABLES

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core configurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

  • STOCK HOLDING

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
