CY PVC (YSLCY) Control Cable

CY cables, also known as screened flexible cables or by their European designation YSLCY (PVC sheathed) and HSLCH (LSZH sheathed), form part of Eland Cables' Veriflex portfolio.

Product Information

CY PVC and CY LSZH cables are used in control equipment, installed as interconnecting cables for measurement, control or regulation. They are typically used in applications requiring interference-free transmission due to their multi-core flex, tinned copper wire braid (TCWB), and polyethylene terephthalate (PET) separator, which protect it from external electromagnetic influences which could degrade accurate signal transmission. The CY cable’s TCWB and PET also provide protection against light mechanical stress.

Application: Veriflex® screened flexible connecting cables for instrumentation and control equipment, for tooling machinery production lines and, in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. These cables are not used for outdoor or underground installation.
Suitability: For assembly and production lines, conveyors, and computer units as interconnecting cables for measurement, control or regulation. Suitable for flexible use when temporarily moved without tensile stress.
Standards & Voltage Rating: VDE 0207-363-3, VDE 819-102 (TM54) Flame Retardant according to IEC/EN 60332-1-2

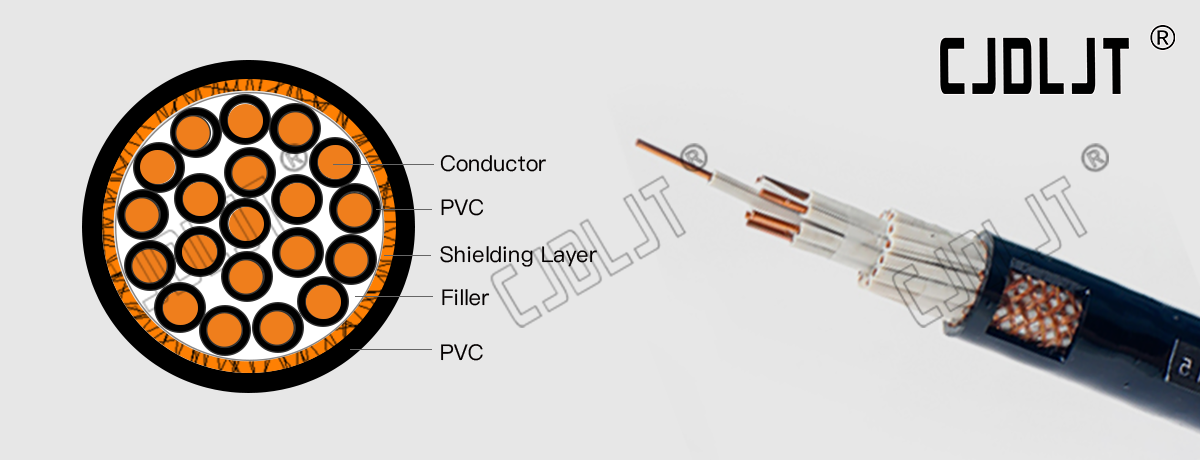

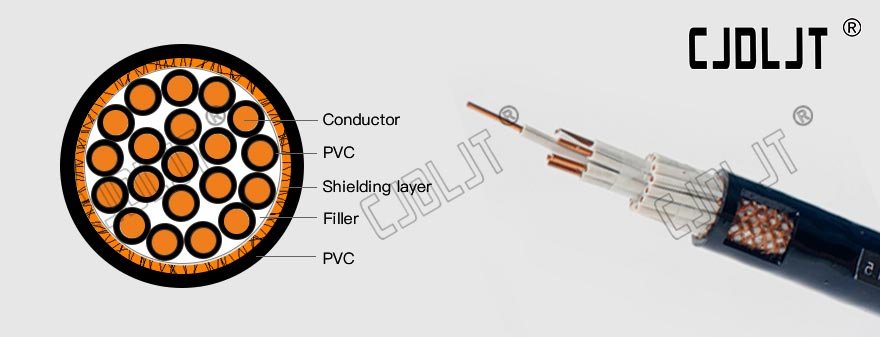

Construction:
- Conductor
  - Class 5 flexible plain copper
- Insulation
  - PVC (Polyvinyl Chloride)
- Separator
  - PET (Polyester Tape)
- Screen
  - TCWB (Tinned Copper Wire Braid)
- Sheath
  - PVC (Polyvinyl Chloride
Details: Multi-core configurations across a range of core sizes. TCWB provides electromagnetic protection. CPR compliant.

These cables are suitable for flexible use when temporarily moved without tensile stress. CY cables can be used outdoors when protected against direct sunlight, and in dry or moist conditions (including oil-water mixtures) indoors.

Both the PVC and LSZH sheathed variants are widely specified across a range of multi-core configurations and core sizes. 2 core CY cables are available as standard with black numbered cores (YSLCY-OZ cable) with 3 cores and above being black numbered cores with green/yellow (YSLCY-JZ). Coloured cores with green/yellow (YSLCY-JB) and without green/yellow (YSLCY-OB) are also available upon request.

Specifications

Nominal cross sectional area of conductor	Approximate Overall Diameter	Max DC resistance of conductor at 20℃	Min DC resistance of insulation at 70℃
No×mm2	mm	Ω/km	Ω/km
12×0.75	13.01	24.5	0.012
12×1.0	13.64	18.1	0.011
12×1.5	15.76	12.1	0.011
12×2.5	18.26	7.41	0.010
14×0.75	13.55	24.5	0.012
14×1.0	14.46	18.1	0.011
14×1.5	16.45	12.1	0.011
14×2.5	19.49	7.41	0.010
16×0.75	14.43	24.5	0.012
16×1.0	15.13	18.1	0.011
16×1.5	17.25	12.1	0.011
16×2.5	20.47	7.41	0.010
19×0.75	15.07	24.5	0.012
19×1.0	15.82	18.1	0.011
19×1.5	17.66	12.1	0.011
19×2.5	21.31	7.41	0.010
