What is your packing?

Hello,Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel wood, whole wood ,ect. We are using international standatd packing for different kinds ofcable, to ensure there will be no problem during

Which countries routinely use IEC cables?

Hello,(IEC) member countries cover more than 97% of the worlds population. The members are the national committees of the respective country, responsible for setting national standards and guidelines.

What's the quality assurance you can provide and how do you control the quality?

Hello,100% inspection on assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to confirm they consistently achieve the required quality levels.

What the out looking different of the Control cable and instrumentation cable?

Hello,The instrumentation cable core usual are pairing.Thanks.

LiYCY Cable

Our LiYCY cables are flexible multicore flame retardant screened signal and data transmission cables designed for indoor applications with increased requirements for electromagnetic compatibility such as process control units and computer systems.

Product Information

There are two variants of LiYCY, one of which has twisted pairs (TP) for reduced interference (crosstalk). These cables are also available without a screen as LiYY.

Application: LiYCY cable can be used for signal transmission between electronic devices, in computer systems or process control units with increased electromagnetic compatibility requirements.
Suitability: For indoor applications requiring increased requirements for electromagnetic compatibility such as process control units and computer systems.
Standards & Voltage Rating: VDE 0482-332-1-2, EN 60811-2- Fire Retardant according to: IEC 60332-1

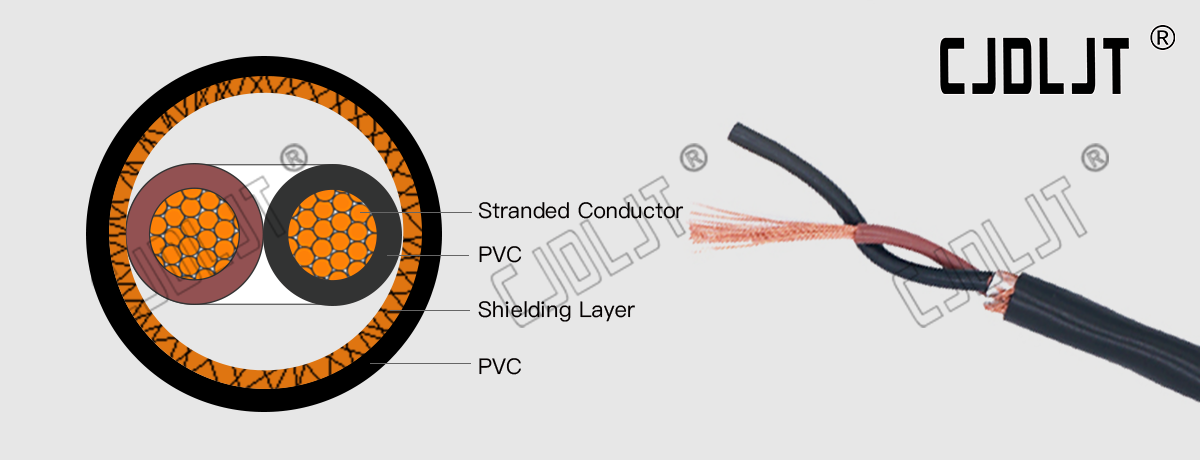

Construction:
- Conductor
  - Class 5 Fine Stranded Bare Copper
- Insulation
  - PVC (Polyvinyl chloride)
- Screen
  - TCWB (Tinned Copper Wire Braid)
- Outer Sheath
  - PVC (Polyvinyl chloride)
Details: Twisted pairs (TP) for reduced interference (crosstalk) option available. CPR compliant.

The voltage rating for LiYCY cables with a cross-section of up to 0.14mm2 is 350V. Larger cross-sections have a voltage rating of 500V. They operate in a temperature range of -40^oC to +80^oC when used in fixed installations and -5^oC to +50^oC in flexible installations.

LiYCY cables are manufactured according to VDE 0812 and 0814 and are flame retardant to VDE 0472 and IEC 60332-1-2.

The tinned copper wire braid offers protection from electrical and electromagnetic interference (EMI), similar to the H05VVC4V5-K cable. It also offers a moderate degree of mechanical protection.

Specifications

Nominal cross sectional area of conductor	Approximate Overall Diameter	Max DC resistance of conductor at 20℃	Min DC resistance of insulation at 70℃
No×mm2	mm	Ω/km	Ω/km
12×0.75	12.4	24.5	0.012
12×1.0	13.0	18.1	0.011
12×1.5	15.7	12.1	0.011
12×2.5	18.3	7.41	0.010
12×4.0	20.7	4.61	0.0085
12×6.0	22.9	3.08	0.0070
14×0.75	12.9	24.5	0.012
14×1.0	14.3	18.1	0.011
14×1.5	16.4	12.1	0.011
14×2.5	19.2	7.41	0.010
14×4.0	21.7	4.61	0.0085
14×6.0	24.1	3.08	0.0070
16×0.75	14.2	24.5	0.012
16×1.0	15.0	18.1	0.011
16×1.5	17.2	12.1	0.011
16×2.5	21.41	7.41	0.010
19×0.75	15.82	24.5	0.012
19×1.0	16.57	18.1	0.011
19×1.5	18.82	12.1	0.011
19×2.5	22.47	7.41	0.010

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
