YY PVC (YSLY) Control Cable

Our low smoke zero halogen (LSZH) YY cables are particularly suitable for installation where smoke emission and toxic fumes would create a potential threat to life or equipment in the event of fire.
Inquiry
YY

Product Information

Veriflex YY cables are versatile multi-core power and signal control cables suitable for a wide variety of industrial applications. These include use as an interconnecting cable in manufacturing plants and other automated production facilities for measuring, controlling or regulating equipment including assembly and production lines, conveyors and computer units. These unshielded control cables are highly flexible for easy installation both outdoors, when protected against direct sunlight, and indoors in dry or moist conditions. The tough outer sheathing protects against the effects of light mechanical and environmental stresses.

  • Application: Veriflex® flexible YY control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable in dry, ambient and wet rooms. These indoor cables are not used for external or underground installation.
  • Suitability: Interconnecting cable for for measuring, controlling or regulating equipment.
  • Standards & Voltage Rating: VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54) Flame Retardant according to IEC/EN 60332-1-2

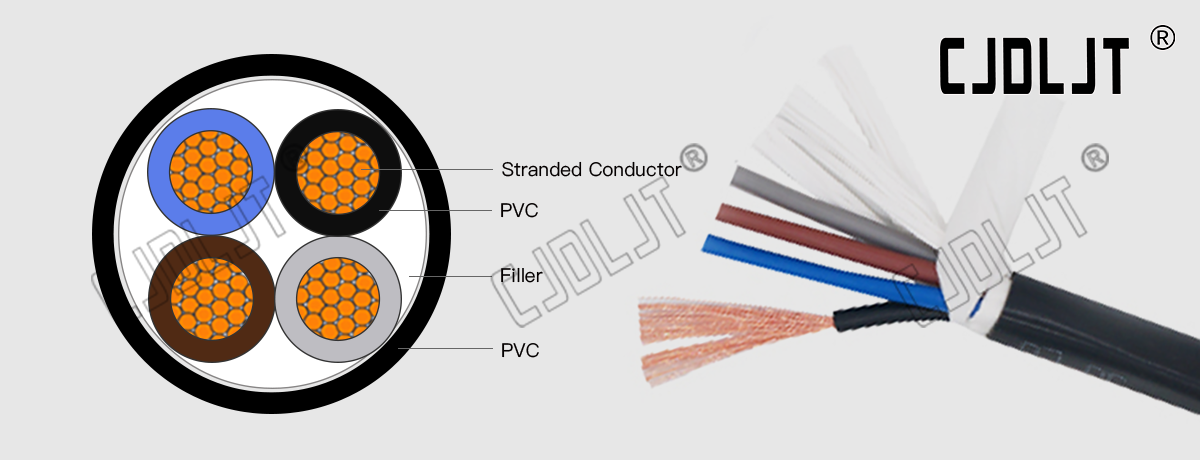

  • Construction:
    • Conductor
      • Class 5 flexible plain copper
    • Insulation
      • PVC (Polyvinyl Chloride)
    • Sheath
      • PVC (Polyvinyl Chloride)
  • Details: Commonly known by constructional references YSLY and HSLH. Available in a large range of core configurations and conductor sizes. CPR compliant. Available with or without green/yellow core.

Specifications

Core*Nominal Cross sectional Area Strands conductor max diameter Thickness of insulation Thickness of sheath Approximate cable diameter Max DC resistance of conductor at 20℃
No.  x  mm2 mm mm mm mm Ω/km
10  x  0.5 mm 16/0.20 0.6 1.2 11.2 39
12  x  0.5 mm 16/0.20 0.6 1.2 11.6 39
14  x  0.5 mm 16/0.20 0.6 1.2 12.1 39
16  x  0.5 mm 16/0.20 0.6 1.5 13.3 39
19  x  0.5 mm 16/0.20 0.6 1.5 14.0 39
10  x  0.75 mm 24/0.20 0.6 1.2 12.1 26
12  x  0.75 mm 24/0.20 0.6 1.5 13.1 26
14  x  0.75 mm 24/0.20 0.6 1.5 13.7 26
16  x  0.75 mm 24/0.20 0.6 1.5 14.4 26
19  x  0.75 mm 24/0.20 0.6 1.5 15.1 26
24  x  0.75 mm 24/0.20 0.6 1.5 17.4 26
30  x  0.75 mm 24/0.20 0.6 1.5 18.4 26
10  x  1 mm 32/0.20 0.6 1.5 13.4 19.5
12  x  1 mm 32/0.20 0.6 1.5 13.8 19.5
14  x  1 mm 32/0.20 0.6 1.5 14.5 19.5
16  x  1 mm 32/0.20 0.6 1.5 15.2 19.5
19  x 1 mm 32/0.20 0.6 1.5 16.0 19.5
24  x  1 mm 32/0.20 0.6 1.5 18.5 19.5
30  x  1 mm 32/0.20 0.6 1.7 19.9 19.5
10  x  1.5 mm 30/0.25 0.7 1.5 15.3 13.3
12  x  1.5 mm 30/0.25 0.7 1.5 15.8 13.3
14  x  0.5 mm 30/0.25 0.7 1.5 16.6 13.3
16  x  1.5 mm 30/0.25 0.7 1.5 17.5 13.3
19  x  1.5 mm 30/0.25 0.7 1.5 18.4 13.3
10  x  2.5 mm 49/0.25 0.8 1.5 18.0 7.98
