What is your packing?

Hello,Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel wood, whole wood ,ect. We are using international standatd packing for different kinds ofcable, to ensure there will be no problem during

Which countries routinely use IEC cables?

Hello,(IEC) member countries cover more than 97% of the worlds population. The members are the national committees of the respective country, responsible for setting national standards and guidelines.

What's the quality assurance you can provide and how do you control the quality?

Hello,100% inspection on assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to confirm they consistently achieve the required quality levels.

What the out looking different of the Control cable and instrumentation cable?

Hello,The instrumentation cable core usual are pairing.Thanks.

0.6/1KV AAAC / ACSR XLPE / PE Insulation ABC twist cable

0.6/1KV AAAC/ACSR XLPE/PE Insulation twist cable AAAC conductor has been widely used in power transmission lines and electricity distribution lines with various voltage levels

Application

Primarily used for overhead service drop applications,such as: street lighting, outdoor lighting and temporary service for construction. To be used at voltages of 600v phase-to-phase or less and conductor temperatures not to exceed 90℃ for cross-linked polyethylene(XLPE) insulated conductors. Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room entrance wires with AC rated voltage 1kV and below.

Operation Characteristic

Rated Voltage U0/U(Um) (KV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2 Nominal cross-section(mm2): 10~240

Standard

GB/T12527, IEC60502, NF C 33-209, BS 7870, ANSI/ICEA S-76-474 AS/NZS 3560.1 etc

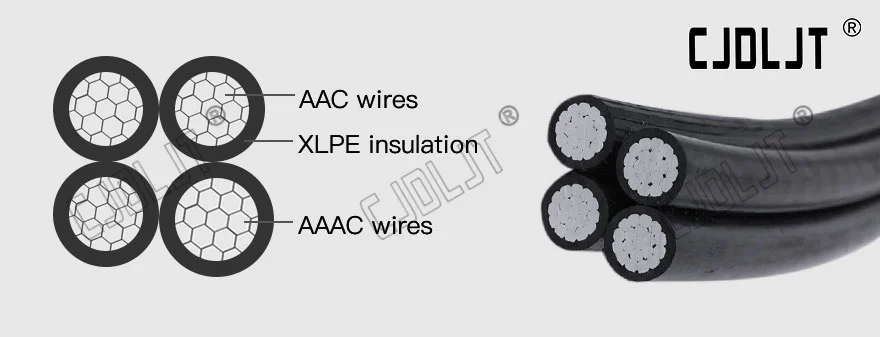

Cable Structure

Phase conductors: Round stranded or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR Neutral or messenger conductor: Round stranded or compacted 6201 aluminium alloy or AAC ,ACSR Street lighting conductor: Round stranded or compacted Aluminium conductor Insulation : XLPE( UV-resistant)

Specifications

Cable Name	Description	Application
Covered line wire Service drop cable	XLPE insulated aerial cables	power circuit transmission in urban streets and buildings.
Insulated aerial cables	Steel Reinforced Aluminium Wire with XLPE insulated aerial cable
XLPE insulated aerial cables	For aerial power transmission application,able to bear moderate pulling force.
