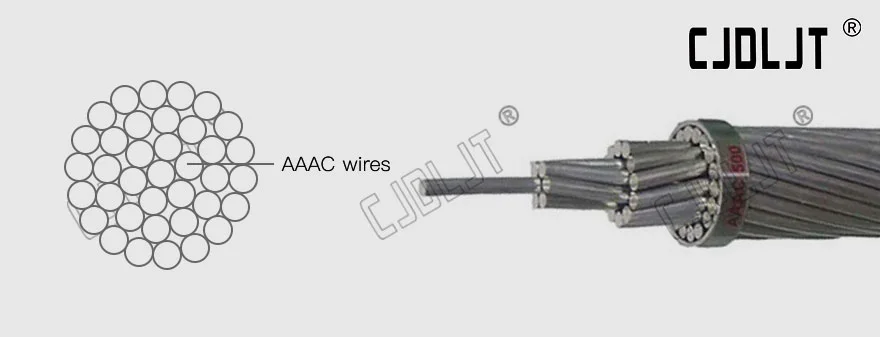

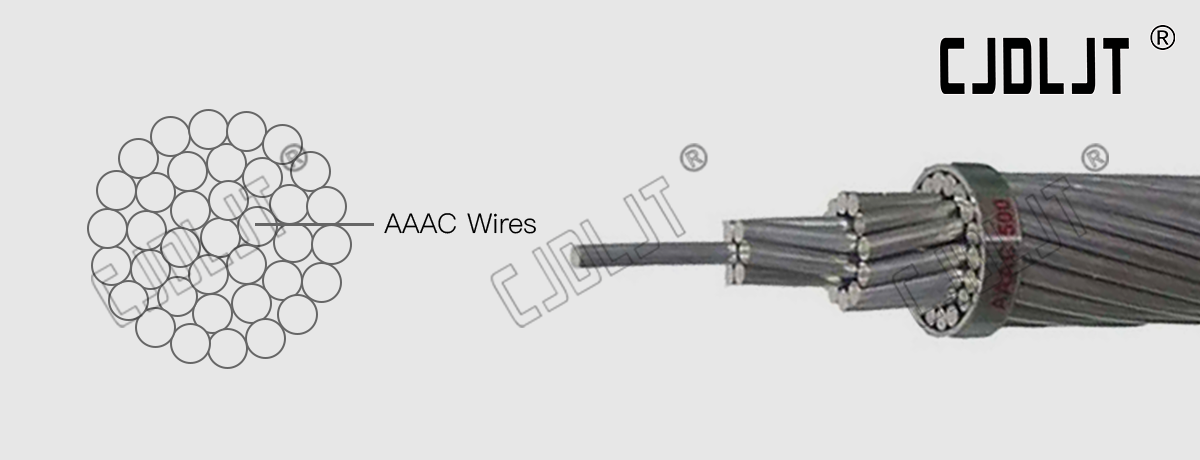

AAAC-All Aluminium Alloy Conductor

AAAC are used as a bare conductor cable on aerial circuits that require a larger mechanical resistance than the AAC and a better corrosion resistance than the ACSR. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR.
Inquiry
1-1Z923114I2

Product Information

  • Application: AAAC is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC / ACSR.
  • Suitability: Power transmission and distribution lines.
  • Standards & Voltage Rating: ASTM B399, ASTM B231, TS IEC 1089, DIN 48201, BS 215, UNE 21.018
  • Construction:Conductor Aluminium alloy conductor Type AL2 to AL7 as per EN 50183
  • Details: Sizes referred to by codenames – AAC uses Flowers / Insects, AAAC is Trees / American Cities, ACSR is Birds / Animals.

AAAC-ASTM-B All Aluminium Alloy Conductor
AAAC are used as a bare conductor cable on aerial circuits that require a larger mechanical resistance than the AAC and a better corrosion resistance than the ACSR. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR.

Specifications

Code WordSize - KCMNominal Cross Sectional AreaNominal Weight kg/km
Akron30.580.610mm2503.49
Butte312.86.238mm24989.52
Flint740.819.863mm213834.57
Cables sizes are available as AWG in cmill, kcmill and MCM.
Overhead Line Datasheets
The technical datasheets provided list the most commonly specified sizes for overhead line wire - referenced by code word or cross-sectional area size. Additional dimensional and electrical information to support cable selection is also provided. Should additional sizes be required or further technical support, please speak to the team
