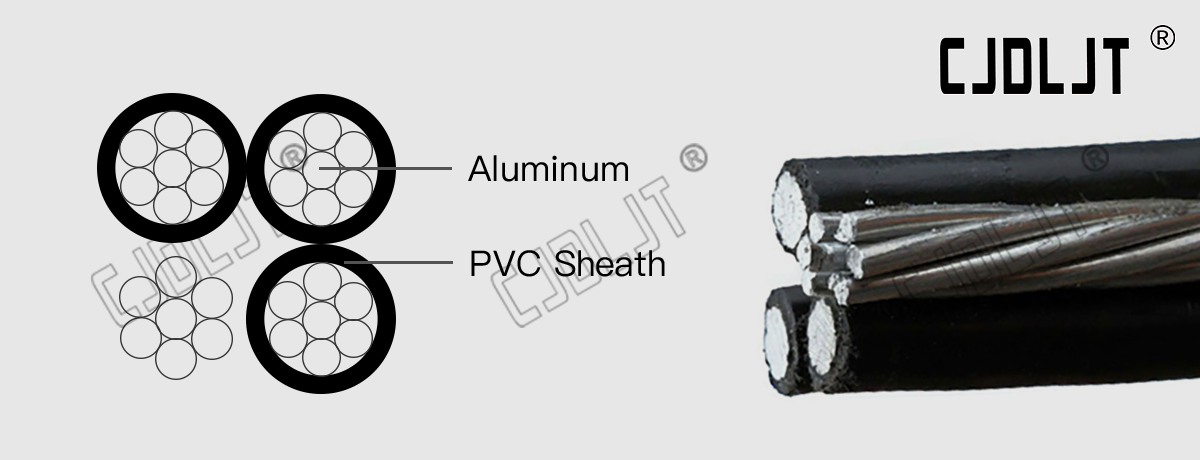

ABC-LV AS/NZS 3560 P1 Aerial Bundle Cable 1kV

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together.

Product Information

Application: Aerial Bundle Cable (ABC) low voltage cable for overhead power distribution offering higher level of safety and reliability and lower power losses than bare conductors.
Suitability: Temporary power distribution to street lighting and secondary pole-to-pole service cables.
Standards & Voltage Rating: AS/NZS 3560 Part 1
Construction: Phase Conductor
- Class 2 Circular compacted stranded Aluminium
Neutral Conductor
- Class 2 Circular compacted stranded Aluminium
Insulation
- XLPE (Cross-linked polyethylene) UV Resistant
Core Identification
- Phases by longitudinal ribs (I, II, III)
- Neutral core by longitudinal ribs (≤ 50 mm2
- min.12 ribs; ≥ 50
- mm2
- min.16 ribs)
Details: Single core and multi-core configurations. Additional steel wire supports can also be incorporated as catenary wires .

Specifications

Table 1 : Technology requirements of copper core ABC insulated cable

Nominal cross section area of conductor(mm²)	Single wire Min. No of conductor	Conductor O.D.(reference value)/mm	Nominal thickness of insulation(mm)	The Max. resistance of conductor at 20°C(Ω/km) - Hard copper	The Max. resistance of conductor at 20°C(Ω/km) - Soft copper	The Min, resistance of insulation at rated temperature - 70°C	The Min, resistance of insulation at rated temperature - 90°C	Breaking load of single core
10	6	3.8	1.0	1.906	1.83	0.0067	0.67	3471
16	6	4.8	1.2	1.198	1.15	0.0065	0.65	5486
25	6	6.0	1.2	0.749	0.727	0.0054	0.54	8465
35	6	7.0	1.4	0.540	0.524	0.0054	0.54	11731
50	6	8.4	1.4	0.399	0.387	0.0046	0.46	16502
70	12	10.0	1.4	0.276	0.268	0.0040	0.40	23461
95	15	11.6	1.6	0.199	0.193	0.0039	0.39	31759
120	18	13.0	1.6	0.158	0.153	0.0035	0.35	39911
150	18	14.6	1.8	0.128	0.124	0.0035	0.35	49505
185	30	16.2	2.0	0.1021	0.0991	0.0035	0.35	61846
240	34	18.4	2.2	0.0777	0.0754	0.0034	0.34	79823

Table 2: Technology requirements of aluminum core,aluminum alloy core ABC insulated cable

No.section area of conductor (mm²)	Single wire Min. No Of conductor	Conductor O.D. (reference value)/mm	Cable Max. Average outer diameter(mm)	The Max. Resistance of conductor at 20°C (Ω/km)		The Min. resistance of insulation at rated temperature		Breaking load of single core
No.section area of conductor (mm²)	Single wire Min. No Of conductor	Conductor O.D. (reference value)/mm	Cable Max. Average outer diameter(mm)	Alumiunm	Aluminum alloy	70°C	90°C	Alumiunm	Aluminum alloy
10	6	3.8	6.5	3.08	3.574	0.0067	0.67	1650	2514
16	6	4.8	8.0	1.91	2.217	0.0065	0.65	2517	4022
25	6	6.0	9.4	1.20	1.393	0.0054	0.54	3762	6284
35	6	7.0	11.0	0.868	1.007	0.0054	0.54	7011	12569
50	6	8.4	12.3	0.641	0.744	0.0046	0.46	10354	17596
70	12	10.0	14.1	0.443	0.514	0.0040	0.40	17339	30164
95	15	11.6	16.5	0.320	0.371	0.0039	0.39	21033	37706
120	18	13.0	18.1	0.253	0.294	0.0035	0.35	26732	46503
150	18	14.6	20.2	0.206	0.239	0.0035	0.35	34679	60329
185	30	16.2	22.5	0.164	0.190	0.0035	0.35	26732	46503
240	34	18.4	25.6	0.125	0.145	0.0034	0.34	34679	60329
300	30	20.8	27.2	0.100	0.116	0.0033	0.33	43349	75411
400	53	23.2	30.7	0.0778	0.0904	0.0032	0.32	55707	100548

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
