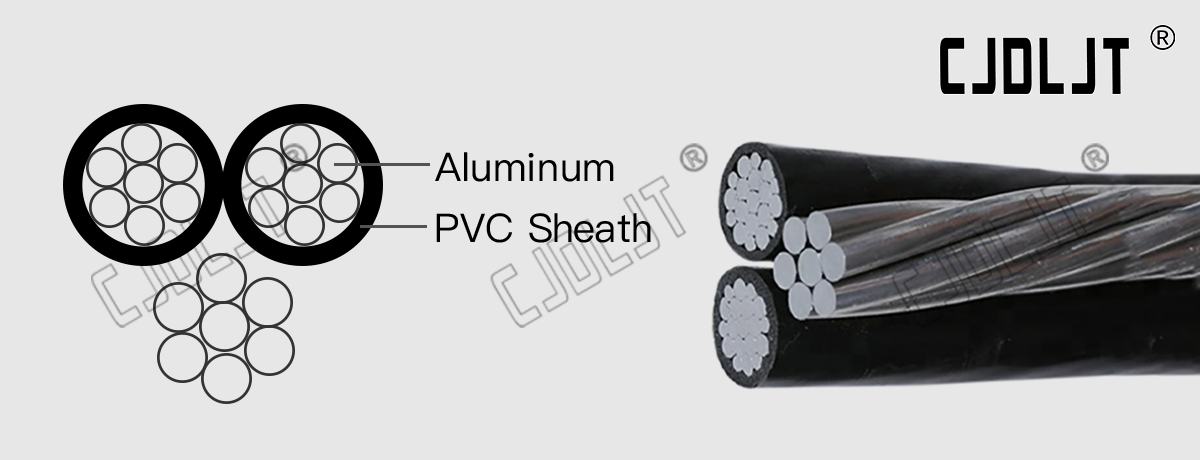

ABC-LV BS 7870 Aerial Bundle Cable 1kV

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together.

Product Information

Aerial Bundle Cable (ABC) low voltage cable for overhead power distribution offering higher level of safety and reliability and lower power losses than bare conductors.

Phase Conductor	Class 2 Circular compacted stranded Aluminium
Neutral Conductor	Class 2 Circular compacted stranded Aluminium
Insulation	XLPE (Cross-linked polyethylene) UV Resistant
Core Identification	Phases by longitudinal ribs (I, II, III) Neutral core by longitudinal ribs (≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs)
Suitability	Temporary power distribution to street lighting and secondary pole-to-pole service cables.
Standards & Voltage Rating	BS 7870

Details

Single core and multi-core configurations. Additional steel wire supports can also be incorporated as catenary wires .

Specifications

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE /Km	CURRENT RATING A
1	16	8.0	74	2.5	1.910	72
1	25	9.0	106	4.0	1.200	107
1	35	10.5	138	5.5	0.868	132
1	50	11.8	182	8.0	0.641	165
1	70	13.0	252	10.7	0.443	205
1	95	15.4	333	13.7	0.320	240
1	120	17.0	408	18.6	0.253	290
1	150	19.0	502	23.2	0.206	334
1	185	21.0	611	28.7	0.164	389
1	240	24.0	801	37.2	0.125	467
2	16	15.6	147	2.5	1.910	72
2	25	18.0	208	4.0	1.200	107
2	35	20.0	277	5.5	0.868	132
2	50	23.5	361	8.0	0.641	165
2	70	25.4	505	10.7	0.443	205
2	95	30.3	666	13.7	0.320	240
2	150	38.0	1004	23.2	0.206	334
4	16	18.8	286	2.5	1.910	72
4	25	21.2	430	4.0	1.200	107
4	35	24.1	553	5.5	0.868	132
4	50	27.8	746	8.0	0.641	165
4	70	31.8	1009	10.7	0.443	205
4	95	37.8	1332	13.7	0.320	240
4	120	54.4	1632	18.6	0.253	290
4+1	50+25	319	814	8.0/4.0	0.641/1.200	165/107
4+1	50+35	319	845	8.5/5.5	0.641/0.868	165/132
4+1	70+25	360	1105	10.7/4.0	0.443/1.200	205/107
4+2	70+25+25	400	1217	10.7/4.0	0.443/1.200	205/107
4+1	95+25	418	1438	13.7/4.0	0.320/1.200	240/107
4+2	95+25+25	420	1544	13.7/4.0	0.320/1.200	240/107
4+1	120+25	590	2050	18.6/4.0	0.253/1.200	290/107

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
