ABC-LV NF C33-209 Aerial Bundle Cable 1kV

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together.

Product Information

Aerial Bundle Cable (ABC) low voltage cable for overhead power distribution offering higher level of safety and reliability and lower power losses than bare conductors.

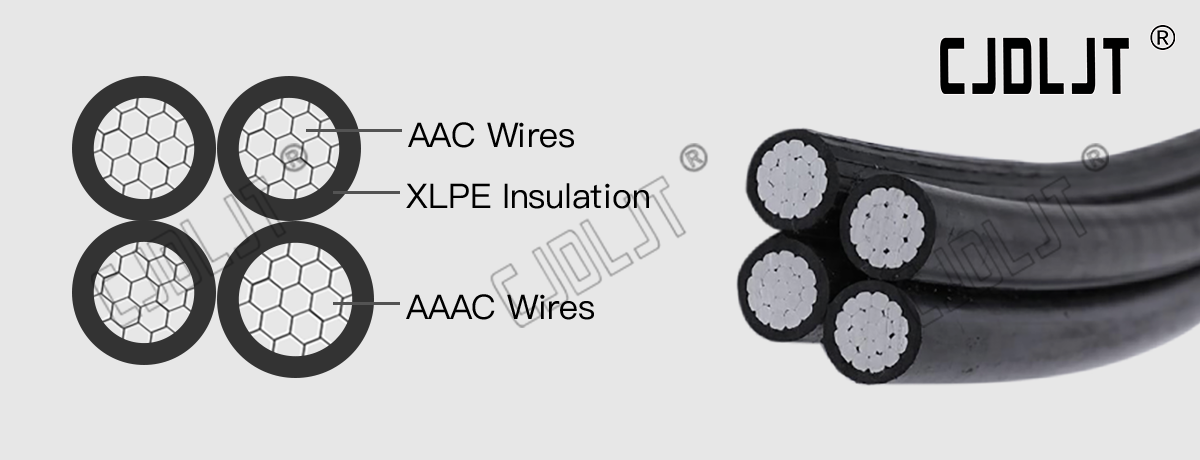

Phase Conductor	Class 2 Circular compacted stranded Aluminium
Neutral Conductor	Class 2 Circular compacted stranded Aluminium
Insulation	XLPE (Cross-linked polyethylene) UV Resistant
Core Identification	Phases by longitudinal ribs (I, II, III) Neutral core by longitudinal ribs (≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs)
Suitability	Temporary power distribution to street lighting and secondary pole-to-pole service cables.
Standards & Voltage Rating	NF C33-209

Details

Single core and multi-core configurations. Additional steel wire supports can also be incorporated as catenary wires .

Specifications

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE /Km	CURRENT RATING A
2	10	12.8	93	1.5	3.080	38
2	16	14.8	129	2.3	1.910	72
2+2	16/1.5	14.8	176	2.3	1.910/12.100	72
2	25	18.0	202	3.8	1.200	107
2+2	25/1.5	18.0	249	3.8	1.200/12.100	107
2	35	20.8	269	5.2	0.868	132
2+2	35/1.5	20.8	316	5.2	0.868/12.100	132
2	50	23.4	352	7.6	0.641	165
2+2	50/1.5	23.4	399	7.6	0.641/12.100	165
4	10	15.4	183	1.5	3.080	38
4	16	17.8	257	2.3	1.910	72
4+2	16/1.5	17.8	304	2.3	1.910/12.100	72
4	25	21.7	404	3.8	1.200	107
4+2	25/1.5	21.7	451	3.8	1.200/12.100	107
4	35	25.1	539	5.2	0.868	132
4+2	35/1.5	25.1	586	5.2	0.868/12.100	132
1+3	54.6/25	21.7	507	3.8	0.630/1.200	107
1+3+1	54.6/25/16	24.3	573	3.8/2.3	0.630/1.200/1.910	107/72
1+3+2	54.6/25/16	29.7	639	3.8/2.3	0.630/1.200/1.910	107/72
1+3+3	54.6/25/16	31.1	705	3.8/2.3	0.630/1.200/1.910	107/72
1+3	54.6/35	25.1	615	5.2	0.630/0.868	132
1+3+1	54.6/35/16	28.1	680	5.2/2.3	0.630/0.868/1.910	132/72
1+3+2	54.6/35/16	34.3	748	5.2/2.3	0.630/0.868/1.910	132/72
1+3+3	54.6/35/16	35.9	814	5.2/2.3	0.630/0.868/1.910	132/72
1+3+1	54.6/35/25	28.1	714	5.2/3.8	0.630/0.868/1.200	132/107
1+3	54.6/50	28.2	741	7.6	0.630/0.641	165
1+3+1	54.6/35/25	31.6	806	7.6/2.3	0.630/0.641/1.910	165/72
1+3+2	54.6/35/25	38.6	875	7.6/2.3	0.630/0.641/1.910	165/72
1+3+3	54.6/35/25	40.4	940	7.6/2.3	0.630/0.641/1.910	165/72
1+3+1	54.6/50/25	31.6	841	7.6/3.8	0.630/0.641/1.200	165/107
1+3	54.6/70	33.0	950	10.2	0.630/0.443	205
1+3+1	54.6/70/16	37.0	1014	10.2/2.3	0.630/0.443/1.910	205/72
1+3+2	54.6/70/16	45.2	1083	10.2/2.3	0.630/0.443/1.910	205/72
1+3+3	54.6/70/16	47.3	1148	10.2/2.3	0.630/0.443/1.910	205/72
1+3+1	54.6/70/25	37.0	1048	10.2/3.8	0.630/0.443/1.200	205/107
1+3+2	54.6/70/25	45.2	1150	10.2/3.8	0.630/0.443/1.200	205/107
1+3+3	54.6/70/25	47.3	1250	10.2/3.8	0.630/0.443/1.200	205/107
1+3	54.6/95	37.4	1176	13.5	0.630/0.320	240
1+3+1	54.6/95/16	41.9	1243	13.5/2.3	0.630/0.320/1.910	240/72
