What is your packing?

Hello,Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel wood, whole wood ,ect. We are using international standatd packing for different kinds ofcable, to ensure there will be no problem during

Which countries routinely use IEC cables?

Hello,(IEC) member countries cover more than 97% of the worlds population. The members are the national committees of the respective country, responsible for setting national standards and guidelines.

What's the quality assurance you can provide and how do you control the quality?

Hello,100% inspection on assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to confirm they consistently achieve the required quality levels.

What the out looking different of the Control cable and instrumentation cable?

Hello,The instrumentation cable core usual are pairing.Thanks.

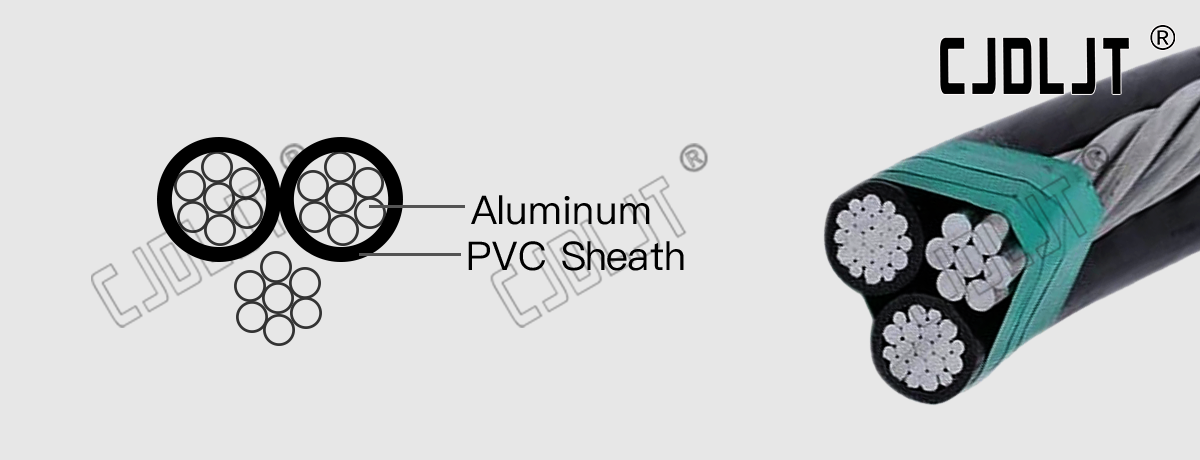

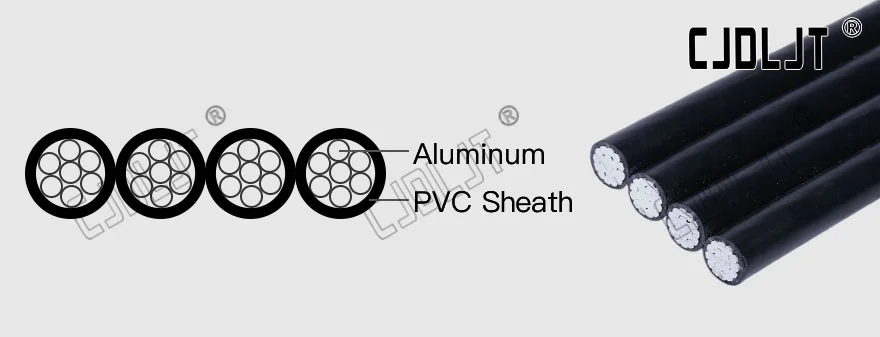

ABC Aerial Bundle Cable

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together.

Product Information

For distribution low power overhead networks in metropolitan, urban and rural areas. For supply of remote facilities and villages of temporary and permanent character. For above-ground house connections.

Phase Conductor	Class 2 stranded Aluminium
Neutral Conductor	Class 2 stranded Aluminium
Insulation	XLPE (Cross-linked polyethylene) compound TIX 2
Core Identification	Phases by longitudinal ribs (I, II, III) neutral core by longitudinal ribs (≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs)
Suitability	Temporary power distribution to street lighting and secondary pole-to-pole service cables.
Standards & Voltage Rating	BS 7870-5, HD 626 S1, EN 60228,

Details

Single core and multi-core configurations. Additional steel wire supports can also be incorporated as catenary wires .

Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	MAX DIAMETER PHASE CONDUCTOR (EXC. RIBS) mm	MAX DIAMETER NEUTRAL CORE (INC. RIBS) mm	NOMINAL WEIGHT kg/km
2	25	1.3	9.7	10.2	200
2	35	1.3	10.7	11.2	266
2	50	1.5	12.1	12.6	374
2	70	1.5	13.8	14.3	506
2	95	1.7	16.1	16.6	681
2	120	1.7	17.6	18.1	816
3	25	1.3	9.7	10.2	318
3	35	1.3	10.7	11.2	414
3	50	1.5	12.1	12.6	545
3	70	1.5	13.8	14.3	756
3	95	1.7	16.1	16.6	999
3	120	1.7	17.6	18.1	1224
5	25	1.3	9.7	10.2	530
5	35	1.3	10.7	11.2	690
5	50	1.5	12.1	12.6	910
5	70	1.5	13.8	14.3	1260
5	95	1.7	16.1	16.6	1665
5	120	1.7	17.6	18.1	2040

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
