ABC-LV HD 626 S1 Aerial Bundle Cable 1kV

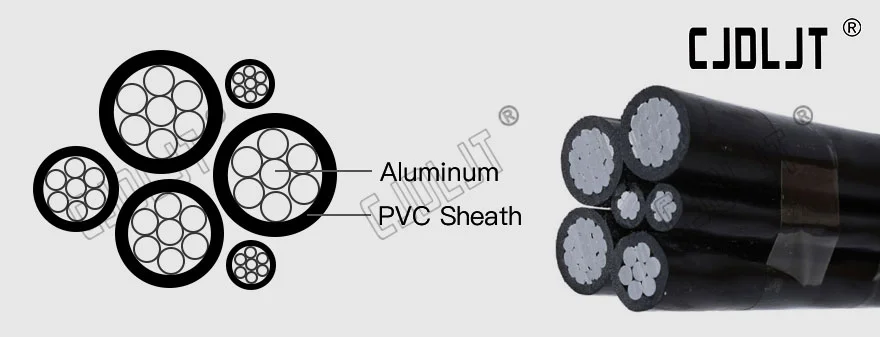

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together.

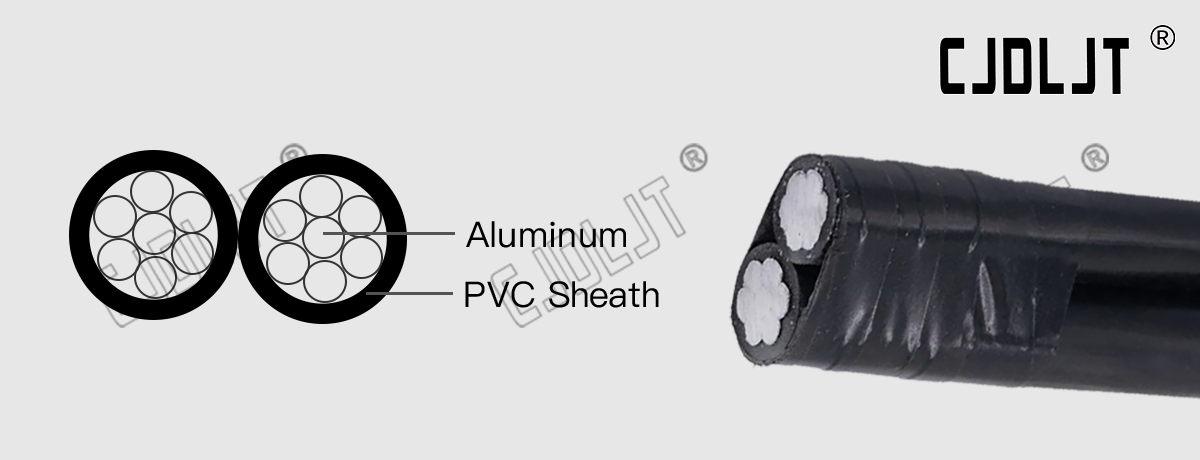

Aerial Bundled Cable with IEC60520 Standard

Product Information

Aerial Bundle Cable (ABC) low voltage cable for overhead power distribution offering higher level of safety and reliability and lower power losses than bare conductors.

Phase Conductor	Class 2 Circular compacted stranded Aluminium
Neutral Conductor	Class 2 Circular compacted stranded Aluminium
Insulation	XLPE (Cross-linked polyethylene) UV Resistant
Core Identification	Phases by longitudinal ribs (I, II, III) Neutral core by longitudinal ribs (≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs)
Suitability	Temporary power distribution to street lighting and secondary pole-to-pole service cables.
Standards & Voltage Rating	HD 626 S1

Details

Single core and multi-core configurations. Additional steel wire supports can also be incorporated as catenary wires .

Specifications

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE /Km	CURRENT RATING A
2	16	72	147	1.910	1.910	2.5
2	25	107	208	1.200	1.200	4.0
2	35	132	277	0.868	0.868	5.5
2	50	165	361	0.641	0.641	8.0
4	16	72	286	1.910	1.910	2.5
4	25	107	430	1.200	1.200	4.0
4	35	132	553	0.868	0.868	5.5
4	50	165	746	0.641	0.641	8.0
4	70	205	1009	0.443	0.443	10.7
4	95	240	1332	0.320	0.320	13.7
4	120	290	1632	0.253	0.253	18.6
4+1	35/35	132/132	694	0.868/0.868	0.868/0.868	5.5/5.5
4+1	50/25	165/107	814	0.641/1.200	0.641/1,200	8.0/4.0
4+1	50/35	165/132	845	0.641/0.868	0.641/0.868	8.5/5.5
4+1	70/25	205/107	1105	0.443/1.200	0.443/1.200	10.7/4.0
4+2	70/25/25	205/107	1217	0.443/1.200	0.443/1.200	10.7/4.0
4+2	70/35	205/132	1150	0.443/0.868	0.443/0.868	10.7/5.5
4+2	70/35/35	205/132	1289	0.443/0.868	0.443/0.868	10.7/5.5
4+1	95/25	240/107	1438	0.320/1.200	0.320/1.200	13.7/4.0
4+1	95/35	240/132	1467	0.320/0.868	0.320/0.868	13.7/5.5
4+2	95/25/25	240/107	1544	0.320/1.200	0.320/1.200	13.7/4.0

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
