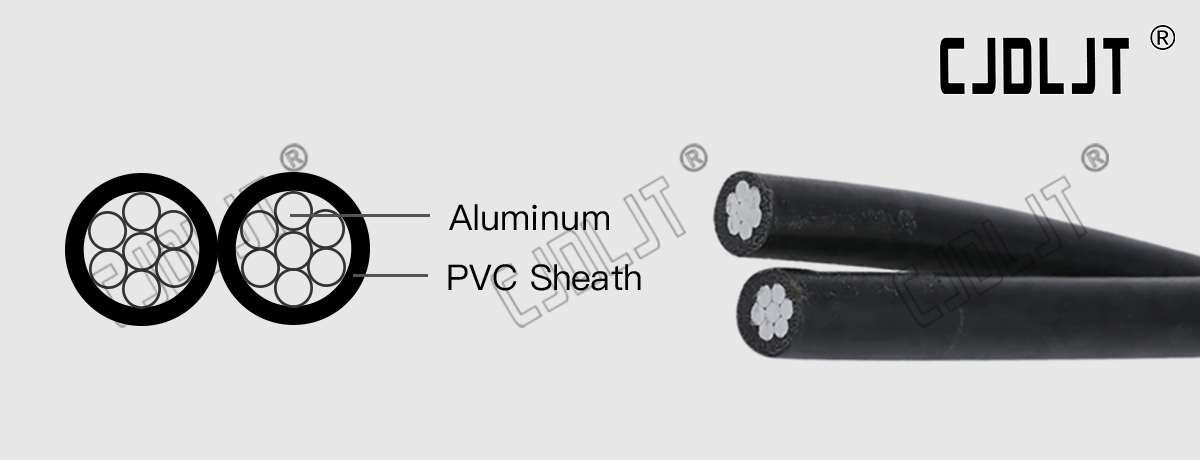

ABC-LV TNB IEC 60502-1 Aerial Bundle Cable 1kV

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together.

Product Information

Aerial Bundle Cable (ABC) low voltage cable for overhead power distribution offering higher level of safety and reliability and lower power losses than bare conductors.

Phase Conductor	Class 2 Circular compacted stranded Aluminium
Neutral Conductor	Class 2 Circular compacted stranded Aluminium
Insulation	XLPE (Cross-linked polyethylene) UV Resistant
Core Identification	Phases by longitudinal ribs (I, II, III) Neutral core by longitudinal ribs (≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs)
Suitability	Temporary power distribution to street lighting and secondary pole-to-pole service cables.
Standards & Voltage Rating	TNB Specification (IEC 60502-1)

Details: Single core and multi-core configurations. Additional steel wire supports can also be incorporated as catenary wires .

Specifications

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE /Km	CURRENT RATING A
3+1	16/25	19.0	290	4.0	1.200	107
3+1	25/25	23.2	400	5.5	0.868	132
3+1	35/25	25.6	500	8.0	0.641	165
3+1	50/35	30.0	680	10.7	0.443	205
3+1	70/50	34.9	920	13.7	0.320	240
3+1	95/70	40.6	1270	18.6	0.253	290
3+1	120/95	44.1	1510	23.2	0.206	334
3+1	150/120	49.2	1870	28.7	0.164	389
3+1	185/120	54.9	2340	37.2	0.125	467
3+2	25/25/16	23.2	470	2.5	1.910	72
3+2	35/25/16	25.6	560	4.0	1.200	107
3+2	50/35/16	30.0	740	5.5	0.868	132
3+2	70/50/16	34.9	980	8.0	0.641	165
3+2	95/70/16	40.6	1330	10.7	0.443	205
3+2	120/70/16	44.1	1580	13.7	0.320	240
3+2	150/95/16	49.2	1940	23.2	0.206	334
3+2	185/120/16	54.9	2410	2.5	1.910	72
