ACSR-Aluminium Conductor Steel Reinforced

ACSR are available in a range of steel contents ranging from 6% to 40% for additional strength. The higher strength ACSR conductors are commonly used for river crossings, overhead earth wires, and installations involving extra-long spans. The ACSR conductor can, against any given resistance, be manufactured to different tensile strengths, so a high tensile strength combined with its lightweight properties means it can cover longer distances with fewer supports. Due to the greater diameter of the ACSR conductor, a much higher corona limit can be obtained which is advantageous on high and extra high voltage overhead lines.

Product Information

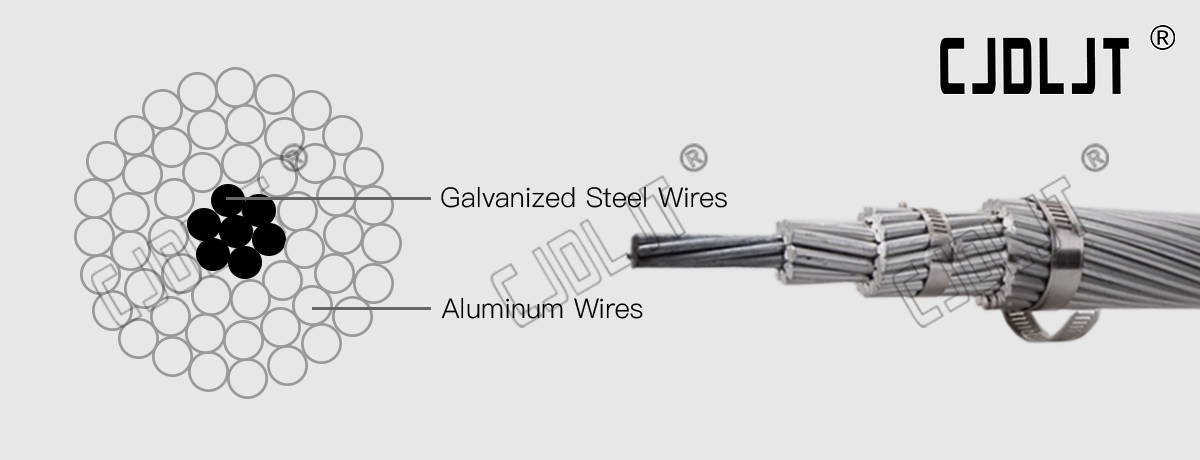

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium. ACSR conductor is available in a range of steel strengths varying from 6% up to 40%. The higher strength ACSR conductors are used for river crossings, overhead earth wires, and installations involving extra long spans. Against any given resistance of conductor, ACSR conductor may be manufactured to have different tensile strengths as per requirement. The principal advantage of these conductors are their high tensile strength and light weight, covering longer spans with less supports. Due to the greater diameter of an ACSR conductor much higher corona limit can be obtained, giving a big advantage on high and extra high voltage overhead lines.

Suitability	Power transmission and distribution lines.
tandards & Voltage Rating	ASTM B231, ASTM B 232, DIN 48201, BS 215, UNE 21.018
Construction	Conductor Hard Drawn Aluminium: BS EN 60889 AL1 and Zinc coated steel wire as per BS EN 50189 with the class and grade in accordance with ST1A, ST5E and ST6C
Details	Sizes referred to by codenames -ACSR is Birds / Animals.

ACSR-ASTM-B Aluminium Conductor Steel Reinforced
ACSR are available in a range of steel contents ranging from 6% to 40% for additional strength. The higher strength ACSR conductors are commonly used for river crossings, overhead earth wires, and installations involving extra-long spans. The ACSR conductor can, against any given resistance, be manufactured to different tensile strengths, so a high tensile strength combined with its lightweight properties means it can cover longer distances with fewer supports. Due to the greater diameter of the ACSR conductor, a much higher corona limit can be obtained which is advantageous on high and extra high voltage overhead lines.

Specifications

CODE	SIZE KCM	STRANDING No. x mm		SECTION mm2		OVERALL DIAMETER mm		CONDUCTOR WEIGHT kg/km			RATED STRENGTH kN	ELECTRICAL RESISTANCE			CURRENT CARRYING CAPACITY Amps
CODE	SIZE KCM	Al.	Steel	total	Al	Total	Core	Total	Al.	Steel	RATED STRENGTH kN	20ºC DC	25ºC AC	75ºC AC	CURRENT CARRYING CAPACITY Amps
TURKEY	6	6 x 1.68	1 x 1.68	15.52	13.3	5.04	1.68	53.8	36.5	17.3	5.295	2.1135	2.1496	2.6850	110
SWAN	4	6 x 2.12	1 x 2.12	24.71	21.18	6.36	2.12	85.4	58	27.4	8.28	1.3278	1.3537	1.7172	145
SWANATE	4	7 x 1.96	1 x 2.61	26.47	21.12	6.53	2.61	99.7	58	41.7	10.5	1.1313	1.3387	1.7383	145
SPARROW	2	6 x 2.67	1 x 2.67	39.2	33.6	8.01	2.67	135.9	92.3	43.6	12.68	0.8343	0.8527	1.1081	195
SPARATE	2	7 x 2.47	1 x 3.30	42.09	33.54	5.24	3.3	158.8	92.3	66.51	6.2	0.8251	0.8435	1.1181	195
ROBIN	1	6 x 3.00	1 x 3.00	49.48	42.41	9	3	171.4	116.4	55	15.8	0.6621	0.6768	0.8907	200
RAVEN	1/0	6 x 3.37	1 x 3.37	62.44	53.52	10.11	3.37	216.1	146.7	69.4	19.49	0.5243	0.5370	0.7165	255
QUAIL	2/0	6 x 3.78	1 x 3.78	78.55	67.33	11.34	3.78	272.5	185	87.5	23.63	0.4160	0.4265	0.5803	295
PIGEON	3/0	6 x 4.25	1 x 4.25	99.31	85.12	12.75	4.25	343.5	233.2	110.3	29.46	0.3304	0.3386	0.4705	340
PENGUIN	4/0	6 x 4.77	1 x 4.77	125.09	107.22	14.31	4.77	433.2	294.2	139	37.16	0.2618	0.2697	0.3829	390
WAXWING	266.8	18 x 3.09	1 x 3.09	142.5	135	15.45	3.09	431.6	372.9	58.7	30.62	0.2119	0.2169	0.2595	480
PARTRIDGE	266.8	26 x 2.57	7 x 2.00	156.9	134.9	16.28	6	546.1	374.3	171.8	50.28	0.2100	0.2146	0.2569	490
OSTRICH	300	26 x 2.73	7 x 2.12	176.9	152.2	17.28	6.36	614.6	421.3	193.3	56.52	0.1867	0.1909	0.2283	530
MERLIN	336.4	18 x 3.47	1 x 3.47	179.7	170.2	17.35	3.47	543.2	469.7	73.5	38.36	0.1680	0.1719	0.2057	560
LINNET	336.4	26 x 2.89	7 x 2.25	198.4	170.6	18.31	6.75	689	472.2	216.8	62.75	0.1663	0.1669	0.2037	570
ORIOLE	336.4	30 x 2.69	7 x 2.69	210.3	170.5	18.83	8.07	784.3	473.2	311.1	76.98	0.1654	0.1690	0.2024	575
CHICKADEE	397.5	18 x 3.77	1 x 3.77	212.1	200.9	18.85	3.77	642.9	555.5	87.4	44.23	0.1221	0.1457	0.1742	620
BRANT	397.5	24 x 3.27	7 x 2.18	227.7	201.6	19.62	6.54	762	558.1	203.9	64.97	0.1417	0.1450	0.1732	630
IBIS	397.5	26 x 3.14	7 x 2.44	234	201.3	19.88	7.32	814	558.2	255.8	72.53	0.1411	0.1444	0.1726	635
LARK	397.5	30 x 2.92	7 x 2.92	247.8	200.9	20.44	8.76	927.1	555.1	372	90.3	0.1401	0.1434	0.1716	645
PELICAN	477	18 x 4.14	1 x 4.14	255.8	242.3	20.7	4.14	770.9	666.4	104.5	52.51	0.1184	0.1217	0.1453	700
FLICKER	477	26 x 3.58	7 x 2.39	273	241.6	21.19	7.17	915.2	670.1	245.1	76.54	0.1178	0.1207	0.1444	710
HAWK	477	26 x 3.44	7 x 2.67	280.8	241.6	21.77	8.01	977.7	669.7	308	86.77	0.1171	0.1201	0.1437	715
HEN	477	30 x 3.20	7 x 3.20	297.6	241.3	22.40	9.6	1111.7	671	440.7	105.91	0.1165	0.1194	0.1427	725
OSPREY	556.5	18 x 4.47	1 x 4.47	298.2	282.5	22.35	4.47	898.9	777	121.9	60.96	0.1014	0.1043	0.1247	775
PARAKEET	556.5	24 x 3.87	7 x 2.58	318.9	282.3	23.22	7.74	1067	781.6	285.4	88.11	0.1010	0.1037	0.1240	785
DOVE	556.5	26 x 3.72	7 x 2.89	328.5	282.6	23.55	6.67	1140	781.3	358.7	105.57	0.1007	0.1033	0.1237	790
EAGLE	556.5	27 x 3.30	7 x 3.46	347.9	282.1	24.27	1.38	1297.7	983.2	514.5	123.71	0.1001	0.1027	0.1227	800
PEACOCK	605	24 x 4.03	7 x 2.65	345.9	306.1	24.19	8.07	1160.8	849.8	311	96.12	0.09285	0.09547	0.11417	830
SQUAB	605	26 x 3.87	7 x 3.01	355.6	305.8	24.51	9.03	1239.7	849.8	389.9	108.13	0.09252	0.09514	0.11352	835
WOODDUCK	605	30 x 3.61	7 x 3.61	378.8	307.1	25.27	10.83	1410.8	851.2	559.6	128.6	0.03186	0.09449	0.11286	845
TEAL	605	30 x 3.61	19 x 2.16	376.1	307.1	25.24	10.80	1398.9	851.5	547.4	135.5	0.09186	0.09449	0.11286	845
KINGBIRD	636	18 x 4.78	1 x 4.78	340.9	323	23.9	4.78	1026.9	887.4	139.5	69.86	0.08891	0.09219	0.11286	840
ROOK	636	24 x 4.14	7 x 2.76	365	323.1	24.84	8.28	1281.8	892.9	388.9	97.9	0.08825	0.09088	0.10925	855
GROSBEAK	636	26 x 3.97	7 x 3.09	321.8	251.5	9.27	1302.2	892.6	-	409.6	1302.2	0.11214	0.08793	0.10827	860
SCOTER	636	30 x 3.70	7 x 3.70	397.9	322.6	25.9	11.1	1477.8	891.4	586.4	135.27	0.0876	0.0899	0.10794	870
EGRET	636	30 x 3.70	19 x 2.22	396.1	322.6	25.9	11.1	1470.3	895	575.3	140.17	0.0876	0.8990	0.10761	870
SWIFT	636	36 x 3.38	1 x 3.38	332	323	23.66	3.58	958.4	888.4	7	61.41	0.0892	0.9186	0.1093	845
FLAMINGO	666.6	24 x 4.23	7 x 2.82	381	337.3	25.38	8.46	1276.9	935.2	341.7	105.46	0.0843	0.8563	0.1037	880
GANNET	666.6	26 x 4.07	7 x 3.16	393.2	338.3	25.76	9.48	1364.7	936.1	428.6	117.48	0.08399	0.08497	0.10302	885
STILT	715.5	24 x 4.39	7 x 2.92	410.2	363.3	26.32	8.76	1372.1	1004.5	367.6	113.47	0.07841	0.08104	0.09678	920
STARLING	715.5	26 x 4.21	7 x 3.28	421	361.9	26.68	9.84	1465.9	1004.5	461.4	126.37	0.07808	0.08038	0.9613	930
REDWING	715.5	30 x 3.92	19 x 2.35	444.5	362.1	27.43	11.75	1653.4	1007.1	646.3	153.96	0.07776	0.08005	0.09547	940
CUCKOO	795	24 x 4.62	7 x 3.08	454.5	402.3	27.72	9.24	1522.4	1115.2	407.2	124.15	0.07087	0.07316	0.08727	985
DRAKE	795	26 x 4.44	7 x 3.45	468	402.6	28.11	10.35	1628.1	1115.8	512.3	140.17	0.07054	0.07283	0.08694	995
COOT	795	36 x 3.77	1 x 3.77	413.1	401.9	26.39	3.77	1198	1110.2	87.8	74.76	0.07152	0.07415	0.08825	975
TERN	795	45 x 3.38	7 x 2.25	431.6	403.8	27.03	6.75	1333.4	1116.1	217.3	98.34	0.07119	0.07382	0.08793	970
