Bare Conductor ACSR

Bare conductor ACSR have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity.
Inquiry
1-1Z923142002

Application

Bare overhead conductors, especially in the form of Aluminum Conductors Steel Reinforced(ACSR), have been widely used for Overhead Transmission Lines as the most cost-effective and dependable product. As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC grade Aluminum Wires over a high strength coated steel core. The core may be single wire or stranded, depending on the size. Because of the numerous stranding combinations of aluminum and steel wires that may be used, it is possible to vary the portions of aluminum and steel so as to obtain the most suitable relation between current carrying capacity and mechanical strength for each application. ACSR has long been widely used as overhead high tension transmission lines and has an established reputation for economy and dependability.

Operation Characteristic

Standard

Cable Structure

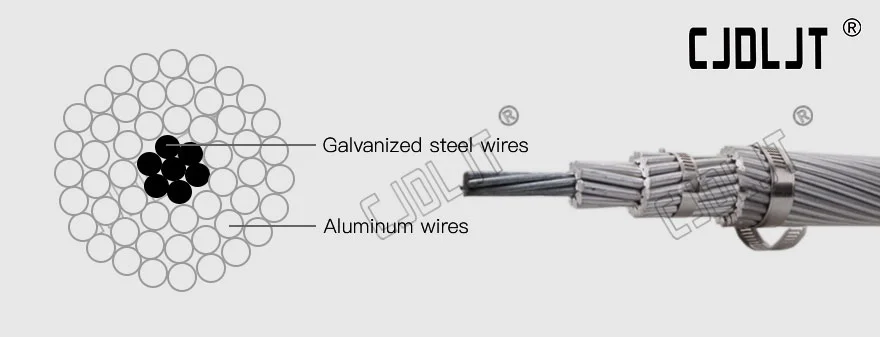

ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H16 on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection. ACSR is according to electrical and mechanical strength requirements of transmission or distribution cable, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.

Specifications

Code name Area No of Aluminium wires/Diameter  No of Steel wires/Diameter Area of Aluminium Area of Steel Cable Area Cable diameter Approximate mass Caculated breaking load
AI.No. mm2 n/mm n/mm mm2 mm2 mm2 mm kg/km kN
Mole 10 6/1.50 1/1.50 10.56 1.76 12.39 3.97 42 4.14
Squirrel 20 6/2.11 1/2.11 20.97 3.49 24.43 5.58 65 6.13
Gopher 25 6/2.36 1/2.36 26.23 4.37 30.62 6.24 106 9.61
Weasel 30 6/2.59 1/2.59 31.6 5.27 36.88 6.85 128 11.45
Fox 35 6/2.79 1/2.79 36.66 6.11 42.77 7.38 141 12.55
Ferret 40 6/3.00 1/3.00 42.39 7.07 49.48 7.94 172 15.20
Rbbit 50 6/3.35 1/3.35 52.86 8.81 61.70  8.86 214 18.35
Mink 60 6/3.66 1/3.66 63.09 10.52 73.71 9.69 255 21.67
Skunk 60 12/2.59 7/2.59 63.19 36.86 100.30  11.30
Beaver 70 6/3.99 1/3.99 74.98 12.50  87.29 10.54 275 23.36
Horse 70 12/2.79 7/2.79 73.33 42.77 116.20  12.16 538 61.20
Racoon 75 6/4.10 1/4.10 79.18 13.20  92.40  10.85 510 58.22
Otter 80 6/4.22 1/4.22 83.88 13.98 97.86 11.16
Cat 90 6/4.50 1/4.50 95.38 15.90  111.30  11.90  404.7 34.38
Hare 100 6/4.72 1/4.72 104.93 17.49 122.50  12.49 404.7 34.38
Dog 100 6/4.72 7/1.57 104.93 13.54 118.50  12.28 394 32.70
Hyena 100 7/4.39 7/1.93 105.90  20.47  122.50  12.49 526 47.96
Leopard 125 8/5.28 7/1.75 175.08 16.83 118.50  12.28
Coyote 125 26/2.54 7/1.91 131.68 20.05 126.20  12.68 502 45.51
Congar 125 18/3.05 1/3.05 131.44 7.30  137.50  13.23 397 29.10
Tiger 125 30/2.36 7/2.36 131.16 20.60  161.70  14.35 675 64.94
Dingo 150 18/3.35 1/3.35 158.57 8.81 167.50  1460 506 35.70
Wolf 150 30/2.59 7/2.59 157.98 36.86 194.90  15.75 726 69.20
Caracal 175 18/3.61 1/3.61 184.14 10.23 194.50  15.74 587 41.10
Lynx 175 30/2.79 7/2.79 183.32 42.77 326.20  20.38 842 79.80
Jaguar 200 18/3.86 1/3.86 210.53 11.70  222.30  16.82 671 46.55
Panther 200 30/3.00 7/3.00 211.95 49.46 261.50  18.25 974 92.25
Lion 225 30/3.18 7/3.18 238.15 55.57 294.20  19.35 1106.6 101.70
Bear 250 30/3.35 7/3.35 264.29 61.67 325.60  20.36 1106.6 101.70
Goat 300 30/3.71 7/3.71 324.14 75.63 400.00  22.57 1401 124.20
Sheep 350 30/3.99 7/3.99 374.92 87.48 461.40  24.24 1401 124.20
Antilope 350 54/2.97 7/2.97 373.92 48.47 421.50  23.17 1501 123.00
Bizon 350 54/3.00 7/3.00 381.51 49.46 431.30  23.43 1502 123.00
Deer 400 30/4.27 7/4.27 429.38 100.19 529.50  25.96
Zebra 400 54/3.18 7/3.18 428.66 55.57 484.50  24.84 1621 131.90
ELK 450 30/4.50 7/4.50 476.89 111.27 588.3 27.37
Camel 450 54/3.35 7/3.35 475.72 61.67 536.8 26.14 1703 138.60
Moose 500 54/3.53 7/3.53 528.22 68.47 597.2 27.57 1886 153.50
Finch 500 54/3.65 19/2.29 564.74 78.22 642.9 28.61 2102 172.40
