0.6/1KV LSZH Sheath power cable

600V/1000V Aluminum or Copper XLPE Insulation Unarmoured & Armoured LSZH Sheathed Fire Resistant Power Cables

Application

These XLPE insulated and LSZH sheathed cables are generally used for fixed installation. Suitable for building wiring, especially in areas where smoke and fume emissions may cause a potential threat to life but not for burial in the ground, either directly or in ducts.

Operation Characteristic

Maximum temperature range during operation (XLPE): 90°C Maximum short circuit temperature (5 Seconds): 250°C Minimum bending radius: Circular copper conductors(up to 25mm2): 4 x Overall Diameter Circular copper conductors(above 25mm2): 6 x Overall Diameter Shaped copper conductors: 8 x Overall Diameter

Standard

Basic design to BS 8573:2012

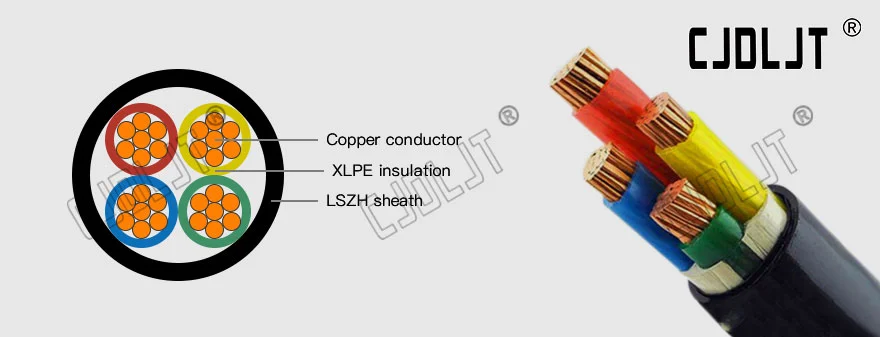

Cable Structure

Conductor: Annealed copper conductor, strand according to BS EN 60228 class 2. Insulation: XLPE type GP8 according to BS 7655-1.3. HEPR type GP6 according to BS 7655-1.2, or crosslinked polyolefi n material type EI 5 according to BS EN 50363-5 can be offered as option. Inner Covering option: The laid up cores may be coverd by an optional extrued inner covering or separating tape. It shall be possible to separate the cores easily. Outer Sheath: Thermoplastic LSZH type LTS 4 according to BS 7655-6.1. Outer Sheath option: UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Specifications

Conductor		Nominal Insulation Thickness	Nominal Sheath Thickness
No.of Coresx Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Sheath Thickness
No.xmm2		mm	mm
4x1.5	2	0.7	1.8
4x2.5	2	0.7	1.8
4x4.0	2	0.7	1.8
4x6.0	2	0.7	1.8
4x10	2	0.7	1.8
4x16	2	0.7	1.8
4x25	2	0.9	1.8
4x35	2	0.9	1.8
4x50	2	1.0	1.8
4x70	2	1.1	2.0
4x95	2	1.1	2.1
4x120	2	1.2	2.3
