0.6/1KV N2XSY cable

600/1000V XLPE Insulated Copper wire screen PVC Sheathed Cable

Application

These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors , in cable ducts , under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Operation Characteristic

Characteristics voltage rating: (UO/U):600/1000V Testing voltage:4000V Temperature Rating: Fixed: -5°C to +70°C Flexed: -30°C to +70°C Short circuited temperature:+250ºC Insulation resistance:20 MΩ x km

Standard

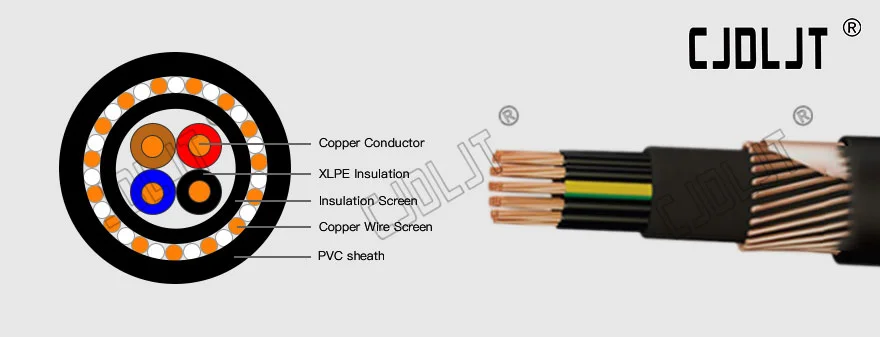

Cable Structure

Conductor: Solid or stranded copper (1C,2C,3C,4C,5C or Multi-core) Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC) Filler: Polypropylene filament with lapped binding tape Binder: Binding tape Inner sheath: Polyvinyl chloride (PVC) Sheath: Polyvinyl chloride (PVC)

Specifications

Wire Gage NO.X Cross Section Area(mm²) Insulation Thickness(mm) Jacket Thickness(mm) Nominal Outside Diameter(mm) Nominal Cable Weight(kg/km)
16 1x1.5 0.7 1.8 9.7 114
14 1x2.5 0.7 1.8 10.2 135
12 1x4 0.7 1.8 10.8 170
10 1x6 0.7 1.8 11.3 214
8 1x10 0.7 1.8 12.4 304
6 1x16 0.7 1.8 13.8 431
4 1x25 0.9 1.8 15.5 548
2 1x35 0.9 1.8 16.6 650
1 1x50 1 1.8 18.8 892
2/0 1x70 1.1 1.8 21.0 1207
3/0 1x95 1.1 1.8 23.5 1600
4/0 1x120 1.2 1.8 26.0 2045
300mcm 1x150 1.4 1.8 28.0 2320
350mcm 1x185 1.6 1.8 30.5 2942
500mcm 1x240 1.7 1.9 34.0 3761
750mcm 1x300 1.8 2.1 37.0 4591
- 1x400 2 2 41.5 5830
- 1x500 2.2 2.3 46.0 7450
- 1x630 2.4 2.5 52.0 9561
- 1x800 0.7 1.8 58.0 12290

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core configurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
