Flexible cable H07V-K

It is suitable for power plant, daily electrical applicances, instruments and telecommuication equiment with rated voltage of 450/750V and below.

Application

It is suitable for power plant, daily electrical applicances, instruments and telecommuication equiment with rated voltage of 450/750V and below.

Operation Characteristic

1.Rated voltage:450/750V. 2.Long-term permission working temperature of cable conductor is 70ºC 3.The minimum allowable bending radius of cable is 6 times of outer diameter of thecable.

Standard

IEC 60227 EN 50525

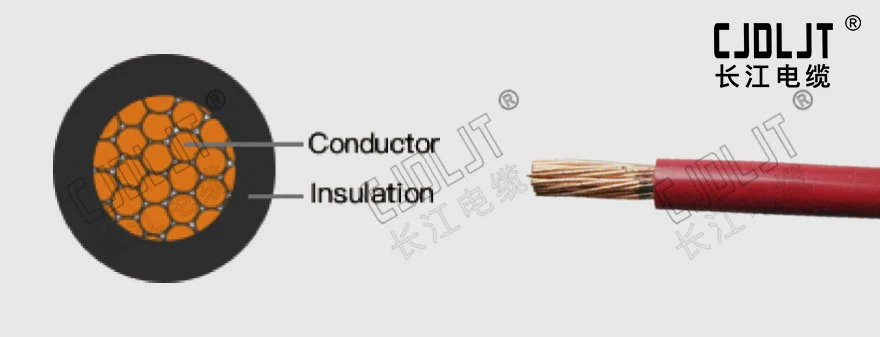

Cable Structure

Conducto: Copper (Class5 according to IEC 60228) Insulation: PVC

Specifications

Nominal cross sectional area	Thickness of insulation	Nominal diameter		Min insulation resiatant at rated temperature
Nominal cross sectional area	Thickness of insulation	Lower limit	Upper limit	Min insulation resiatant at rated temperature
mm2	mm	mm	mm	MΩ·km
1.5	0.7	2.8	3.4	0.01
2.5	0.8	3.4	4.1	0.0095
4	0.8	3.9	4.8	0.0078
6	0.8	4.4	5.3	0.0068
10	1	5.7	6.8	0.0065
16	1	6.7	8.1	0.0053
25	1.2	8.4	10.2	0.005
35	1.2	9.7	11.7	0.0043
50	1.4	11.5	13.9	0.0042
70	1.4	13.2	16	0.0036
95	1.6	15.1	18.2	0.0036
120	1.6	16.7	20.2	0.0032
150	1.8	18.6	22.5	0.0032
185	2	20.6	24.9	0.0032
240	2.2	23.5	28.4	0.0031
