Designed for internal equipment wiring in switch control, relay and instrumentation panels of power switchgear, and for purposes such as internal connectors in rectifier equipment, motor starters and controllers, this flexible cable can be installed in open air, in conduits, or in trunking.
- Application: PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
- Suitability: Flexible PVC cable for installation in conduit, in free air, clipped direct, or on cable tray.
- Standards & Voltage Ratings: EN 50525-2-31, EN 60228 Flame Retardant according to IEC/EN 60332-1-2
- UV Resistant

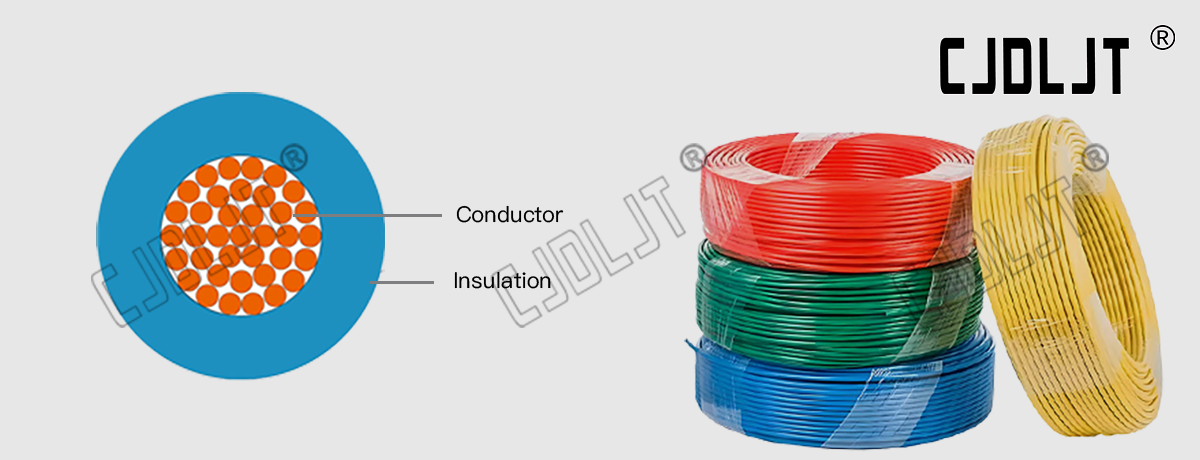

- Construction: Conductor
- Class 5 flexible copper conductor
- Insulation
- PVC (Polyvinyl Chloride)
- Details: BASEC approved. CPR Compliant. Available in a range of colours including Green/Yellow.
Manufactured in accordance with European Harmonised Standard H05V-K and H07V-K, the 2491X cable offers two different voltage ratings depending on the cross-sectional area size of the conductor. The H05V-K cable has a voltage rating of 300/500V and is available in sizes up to 1mm2, whilst the H07V-K cable covers sizes from 1.5mm2 and upwards, and has a rated voltage of 450/750V.
The technical datasheet linked to this page provides the core sizes for this flexible PVC panel wiring. Product codes are completed by replacing the asterisk (*) with the insulation colour code – Red (RD), Black(BK), Blue (BL), Yellow (YW), White (WH), Grey (GR), Brown (BR), Green/yellow (GY). Other colours of 2491X cable are available upon request.
Electrical characteristics reference provide maximum conductor resistance data in line with EN 60228, along with Current Carrying Capacity where installed in a wall, in a thermally insulated wall, or in free air.
