H05VV5-F Cable

H05VV5-F Cable for flexible connection to process and control equipment, including conveyors and production lines, with voltage rating 300/500V.

Product Information

Used in industrial automation application and machine tool equipment, this European harmonised multicore cable has PVC insulated copper conductors sized up to 1.5mm2 and an oil-resistant PVC sheath. It is also referred to as NYSLYÖ-JZ, with the -JZ indicating that the insulated cores are black with white numbers and a green/yellow core.

Application: Flexible power, process control and instrumentation cable for industry and machinery environment. This cable is resistant against most usual chemicals, oil and grease.
Suitability: For connection to process and control equipment, including conveyors and production lines.
Standards & Voltage Rating: VDE 0281-12, VDE 0482-332-1-2, EN 60811-2-1 Fire Retardant according to: IEC 60332-1

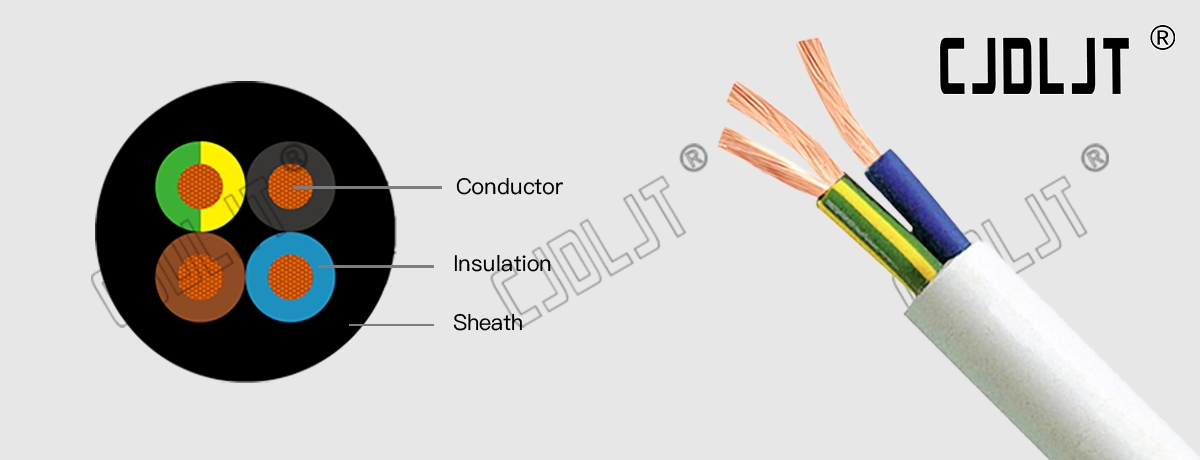

Construction:
- Conductor
  - Class 5 Fine Stranded Bare Copper
- Insulation
  - PVC TI 2 (Polyvinyl Chloride)
- Outer Sheath
  - PVC TM2 (Polyvinyl Chloride)
Details: Also referred to as NYSLYÖ-JZ. Enhanced oil-resistant properties. CPR compliant.

The grey PVC sheath with its enhanced oil-resistant properties can be used in dry and damp internal environments and under low and medium mechanical stress. It is not designed for external use unless provided with additional protection. It provides a maximum operating temperature of +70oC in both fixed and flexible applications. For applications requiring EMC protection, the H05VVC4V5-K cable may be more appropriate.

In addition to being an industrial cable, the H05VV-F cable is also commonly specified in the renewable industry for connecting motor and control equipment in wind turbines.

Specifications

Number of conductors nom. cross section area	Strands conductor maximum diameter	Average insulation thickness	Average shealth thickness	Maximum external cable diameter	Cable nominal weight	Max conductor resistance at 20° C	Max current carrying at 30° C in air mobile service
NO. x mm2	mm	mm	mm	mm	kg / km	Ohm / km	A
2 x 0.75 mm	0,21	0,60	0,80	7,2	53,5	26,00	6,0
2 x 1 mm	0,21	0,60	0,80	7,5	61,5	19,50	10,0
2 x 1.50 mm	0,26	0,70	0,80	8,6	82,5	13,50	16,0
2 x 2.50 mm	0,26	0,80	1,00	10,6	127	7,98	20,0
2 x 4 mm	0,31	0,80	1,10	12,1	174	4,95	30,0
3 x 0.75 mm	0,21	0,60	0,80	7,6	63	26,00	6,0
3 x 1 mm	0,21	0,60	0,80	8,0	73	19,50	10,0
3 x 1.50 mm	0,26	0,70	0,90	9,4	103	13,50	16,0
3 x 2.50 mm	0,26	0,80	1,10	11,4	159	7,98	20,0
3 x 4 mm	0,31	0,80	1,20	13,1	218	4,95	30,0
4 x 0.75 mm	0,21	0,60	0,80	8,3	76	26,00	6,0
4 x 1 mm	0,21	0,60	0,90	9,0	92,5	19,50	10,0
4 x 1.50 mm	0,26	0,70	1,00	10,5	129	13,50	16,0
4 x 2.50 mm	0,26	0,80	1,10	12,5	193	7,98	20,0
4 x 4 mm	0,31	0,80	1,20	14,3	269	4,95	30,0
5 x 0.75 mm	0,21	0,60	0,90	9,3	96,5	26,00	6,0
5 x 1 mm	0,21	0,60	0,90	9,8	112	19,50	10,0
5 x 1.50 mm	0,26	0,70	1,10	11,6	162,5	13,50	16,0
5 x 2.50 mm	0,26	0,80	1,20	13,9	243	7,98	20,0
5 x 4 mm	0,31	0,80	1,40	16,1	345	4,95	30,0

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
