Manufactured in accordance with BS EN 50525-3-11, this multi-purpose cable can be used for applications with a voltage rating of 300/500V such as pendant lighting drops or as a general supply lead in commercial premises.
- Application: Used as an indoor general wiring cable primarily for installations in public areas. Examples include use on pendant lighting drops or as a general supply lead within hospital or airport projects. For installation where fire, smoke emission and toxic fumes create a potential risk to life and equipment.
- Suitability: Used in indoor general wiring, primarily for installation in public areas where Low Smoke Zero Halogen properties are required.
- Standards & Voltage Ratings: EN 50525-3-11 (HD21.14), EN 60228 Flame Retardant according to IEC/EN 60332-1-2

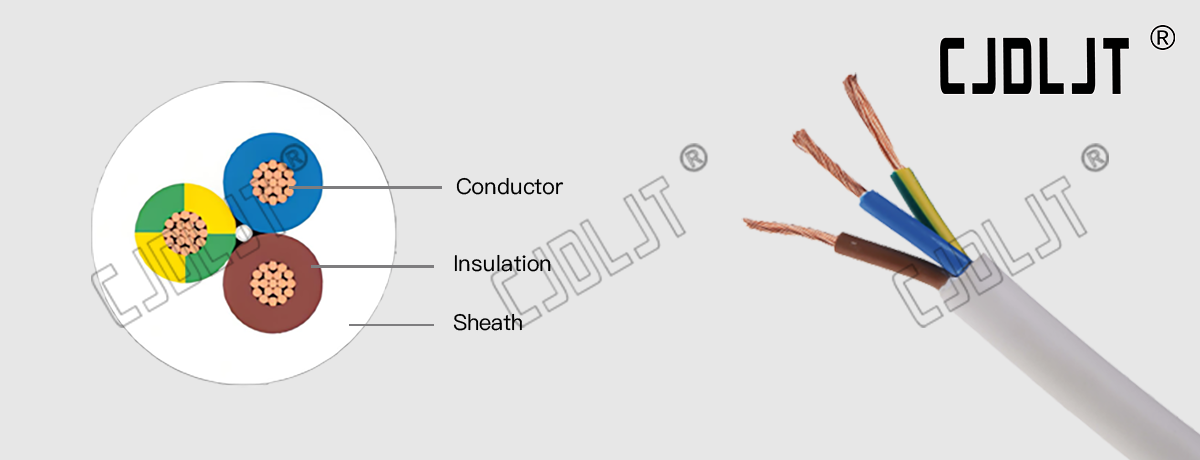

- Construction:
- Conductor
- Class 5 flexible copper conductor
- Insulation
- LSZH (Low Smoke Zero Halogen) Type TI6
- Sheath
- LSZH (Low Smoke Zero Halogen) Type TM7
- Conductor
- Details: Referred to as H05Z1Z1-F under its European designation HAR code. Under UK references it is often referred to according to by the number of cores (eg 3182-B, 3183-B). CPR complaint.
It has a LSZH thermoplastic insulation and sheath which lends itself to installation in locations where smoke emission and toxic fumes in the event of fire would create a potential threat to life and equipment.
