N2XY IEC 60502-1 XLPE PVC 0.6/1kV Cable

N2XY cables are unarmoured power and control cables used for electricity supply in Low Voltage (LV) installation systems with a voltage rating of 600/1000V.

Product Information

These N2XY cables can be used for fixed installation in buildings – fixed on cable trays, in free air, within conduits, or in walls – or for underground use in direct burial and in damp environments where there is no risk of mechanical damage.

Application: These power and fixed wiring cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
Suitability: For fixed installation power supply in buildings or for underground use including direct burial.
Standards & Voltage Ratings: IEC 60502-1, Gen to VDE 0276-603, IEC/EN 60228 Flame retardant according to IEC/EN 60332-1-2

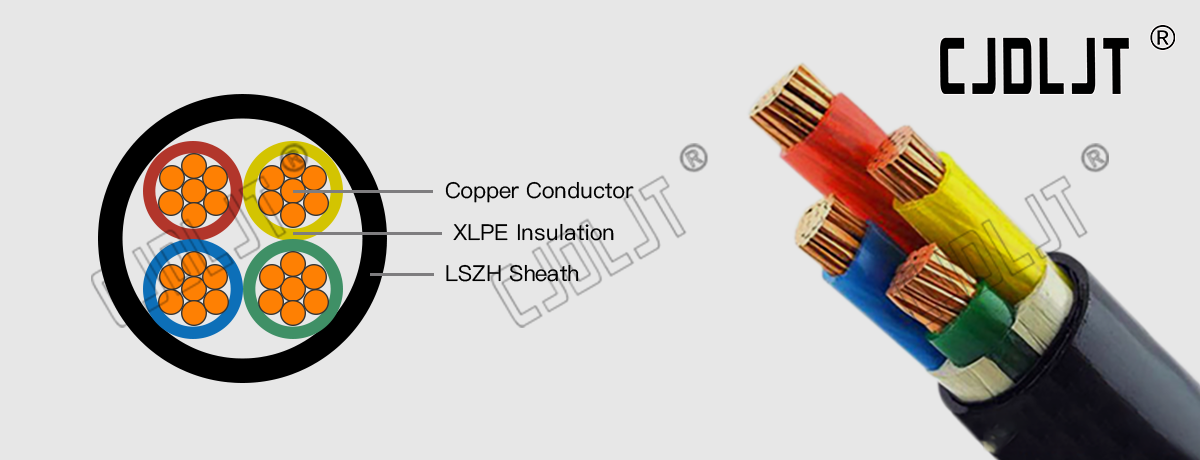

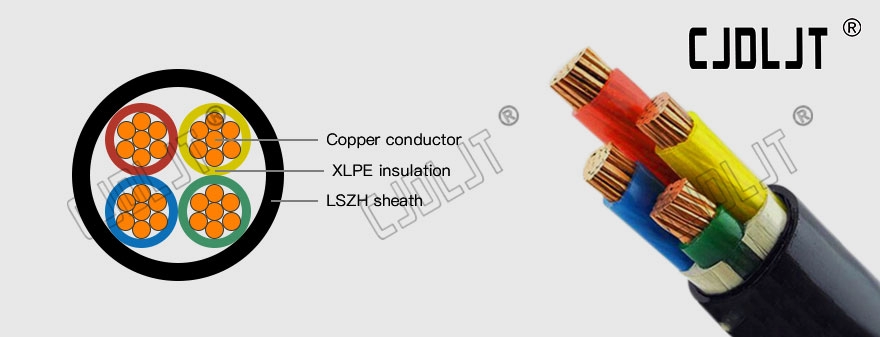

Construction:Conductor
- RE: Class 1 solid copper conductor
- RM: Class 2 stranded circular or circular compacted
- SM: Class 2 stranded sectoral shaped
Insulation
- XLPE (Cross-Linked Polyethylene)
Bedding
- PVC (Polyvinyl Chloride)
Sheath
- PVC (Polyvinyl Chloride)
Details: With (N2XY-J) or without an earthing conductor (N2XY-O). Single and multicore configurations. CPR compliant.

Available as N2XY-J with an earthing conductor or as N2XY-O without an earthing conductor. Cables are available in variations including single core, 2-cores, 3-cores and 4-cores, and in cross-sectional area sizes up to 630mm2 – please refer to the technical datasheets or speak to our technical team for more information.

Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm	CONDUCTOR TYPE	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	16	RM	0.7	1.8	9.8	216
1	25	RM	0.9	1.8	11.5	318
1	35	RM	0.9	1.8	12.6	415
1	50	RM	1	1.8	14.1	543
1	70	RM	1.1	1.8	15.6	746
1	95	RM	1.1	1.8	17.6	1000
1	120	RM	1.2	1.8	19.2	1239
1	150	RM	1.4	1.8	21.2	1515
1	185	RM	1.6	1.8	23.1	1872
1	240	RM	1.7	1.8	25.8	2403
1	300	RM	1.8	1.8	27.8	2974
1	400	RM	2	1.9	31.1	3834
1	500	RM	2.2	2	34.9	4892
1	630	RM	2.8	2.8	46.6	6544
2	1.5	RE	0.7	1.8	10.1	145
2	2.5	RE	0.7	1.8	10.9	179
2	4	RE	0.7	1.8	11.8	226
2	6	RE	0.7	1.8	12.8	284
2	6	RM	0.7	1.8	13.1	295
2	10	RM	0.7	1.8	15	416
2	16	RM	0.7	1.8	17	581
2	25	RM	0.9	1.8	20.4	859
2	35	RM	0.9	1.8	22.5	1109
3	1.5	RE	0.7	1.8	10.5	162
3	2.5	RE	0.7	1.8	11.4	205
3	4	RE	0.7	1.8	12.4	265
3	6	RE	0.7	1.8	13.4	338
3	10	RM	0.7	1.8	15.8	505
3	16	RM	0.7	1.8	18	719
3	25	RM	0.9	1.8	21.6	1072
3	35	RM	0.9	1.8	23.9	1403
3	50	SM	1	1.9	23.8	1581
3	16/10	SM	0.7	1.8	19.8	875.5
3	1 9/16	SM	0.9/0.7	1.8	22.4	1223
3	2 3/16	SM	0.9/0.7	1.8	24.3	1557
3	2	SM	1/0.9	1.9	26.9	1863
3	2	SM	1.1/0.9	2	30	2594
3	1 9/10	SM	1.1/1	2.2	33.8	3505
3	1 5/7	SM	1.2/1.1	2.3	37	4440
3	2 1/7	SM	1.4/1.1	2.4	41.6	5333
3	1 18/19	SM	1.6/1.1	2.6	45.8	6701
3	2	SM	1.7/1.2	2.8	51.6	8674
3	2	SM	1.8/1.4	3	67.2	10624
4	1.5	RE	0.7	1.8	11.3	188
4	2.5	RE	0.7	1.8	12.2	240
4	4	RE	0.7	1.8	13.3	314

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core conﬁgurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
