NA2XBY Aluminium Conductor IEC 60502-1XLPE DSTA PVC 0.6/1kV Cable

NA2XBY cables are designed for local distribution systems and for delivering power and auxiliary control in the Building and Construction industry with a voltage rating of 0.6/1kV.

Product Information

The NA2XBY is resistant to mechanical stresses as a result of the double layer of galvanized steel tape armour applied to the cable. The DSTA provides improved flexibility compared to round steel wires or other more rigid armouring.

With a flame retardant PVC outersheath, the NA2XBY cable is CPR classified, making it suitable for fixed installations internally. The UV resistance makes external applications also permissible, although it should be noted that these cables are not suitable for use in water.

Application: This cable is highly resistant against mechanical stresses due to the galvanised steel tape armoured construction. Suitable for local distribution systems.
Suitability: For local distribution systems. For fixed installations internally and externally.
Standards & Voltage Rating: IEC 60502-1, EN 60228 Flame Retardant according to IEC/EN 60332-1-2

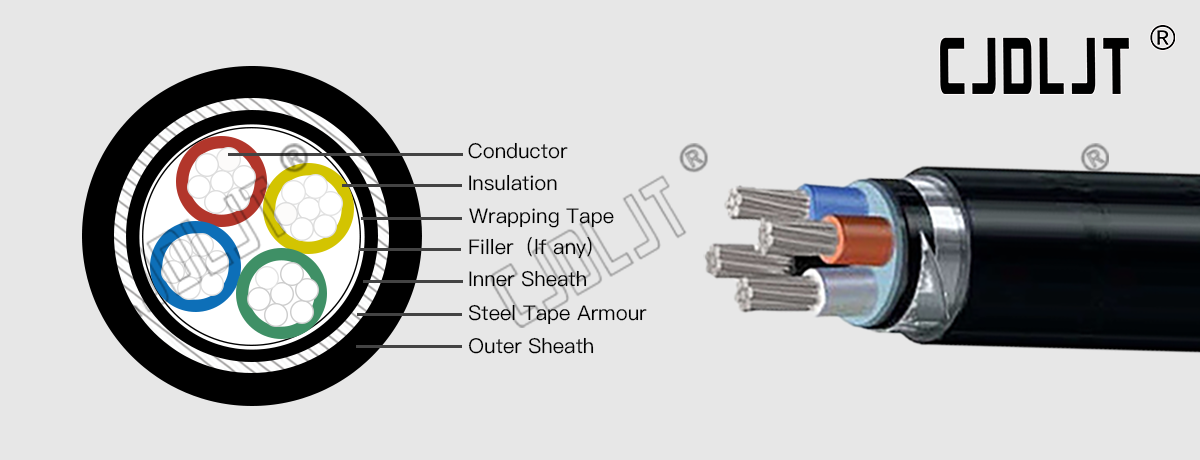

Construction: Conductor
- Class 2 stranded aluminium conductor
Insulation
- XLPE (Cross-Linked Polyethylene)
Filler
- PVC (Polyvinyl Chloride)
Armour
- Double galvanized steel tape
Sheath
- PVC (Polyvinyl Chloride)
Details: Resistant to mechanical stresses. CPR classified. UV resistance.

The Cross-Linked Polyethylene (XLPE) insulation means a maximum operating temperature of +90oC, over Class 2 stranded aluminium conductors.

A screened variant NA2XCY, with tinned copper wire braid for EMC protection, is also available, as is a copper conductor equivalent N2XBY.

Specifications

No,of CORES	core ×cross secticn （MM）	CONDUCTOR	CORE DIANETER (MM2)	INSULATION THCKNESS (MM)	BELT (MM)	ARMOR (MM)	JACKET THICKNESS (MM)	Reference outer diameter （MM)	Reference weight （kg/km）	DC RESISTANCE (Ω/KM)
2	2×10	7/1.35	4.05	0.7	2×30×0.20	20×0.2	1.8	16.6	350.2	3.08
2	2×16	7/1.66	4.98	0.7	2×35×0.20	20×0.2	1.8	18.6	431.1	1.91
2	2×25	7/2.14	6.42	0.9	2×45×0.20	25×0.2	1.8	22	588.5	1.2
2	2×35	7/2.52	7.56	0.9	2×50×0.20	25×0.2	1.8	24.4	713.7	0.868
2	2×50	10/2.52	5.7×13.5	1	2×40×0.20	25×0.2	1.8	21	648.6	0.641
2	2×70	14/2.52	7.0×15.6	1.1	2×50×0.20	25×0.2	1.9	24.2	837.4	0.443
2	2×95	19/2.52	8.3×18.0	1.1	2×55×0.20	25×0.2	2	27	1048.5	0.32
2	2×120	24/2.52	8.9×20.8	1.2	2×60×0.20	25×0.5	2.1	30	1532.6	0.253
2	2×150	30/2.52	10.0×23.1	1.4	2×60×0.20	30×0.5	2.3	33.4	1845.3	0.206
2	2×185	37/2.52	11.1×25.7	1.6	2×60×0.20	30×0.5	2.4	36.6	2182.5	0.164
2	2×240	48/2.52	12.5×29.1	1.7	2×60×0.30	30×0.5	2.6	40.8	2708.5	0.125
2	2×300	61/2.52	15.0×32.2	1.8	2×60×0.30	35×0.5	2.7	46.4	3298.1	0.1
3	3×10	7/1.35	4.05	0.7	2×30×0.20	20×0.2	1.8	17.5	399.3	3.08
3	3×16	7/1.66	4.98	0.7	2×35×0.20	25×0.2	1.8	19.6	495.4	1.91
3	3×25	7/2.14	6.42	0.9	2×45×0.20	25×0.2	1.8	23.3	689.5	1.2
3	3×35	7/2.52	7.56	0.9	2×55×0.20	25×0.2	1.8	25.9	844.9	0.868
3	3×50	10/2.52	7.0×11.5	1	2×50×0.20	25×0.2	1.8	24.6	876.3	0.641
3	3×70	14/2.52	8.0×13.7	1.1	2×55×0.20	25×0.2	1.9	27.3	1119.1	0.443
3	3×95	19/2.52	9.5×15.8	1.1	2×60×0.20	30×0.2	2.1	30.9	1432.7	0.32
3	3×120	24/2.52	10.8×18.6	1.2	2×60×0.20	30×0.5	2.2	35.5	2086.5	0.253
3	3×150	30/2.52	12.5×20.5	1.4	2×60×0.20	30×0.5	2.4	40.3	2545.4	0.206
3	3×185	37/2.52	14.3×23.3	1.6	2×60×0.20	35×0.5	2.5	45.1	3052	0.164
3	3×240	48/2.52	16.3×26.2	1.7	2×60×0.30	35×0.5	2.7	50.8	3814	0.125
3	3×300	61/2.52	18.0×29.8	1.8	2×60×0.30	35×0.5	2.9	55.2	4580.2	0.1
4	4×10	7/1.35	4.05	0.7	2×35×0.20	20×0.2	1.8	18.9	464.9	3.08
4	4×16	7/1.66	4.98	0.7	2×40×0.20	25×0.2	1.8	21.3	584.3	1.91
4	4×25	7/2.14	6.42	0.9	2×50×0.20	25×0.2	1.8	25.4	822.5	1.2
4	4×35	7/2.52	7.56	0.9	2×60×0.20	25×0.2	1.8	28.3	1015.2	0.868
4	4×50	10/2.52	7.5×10.5	1	2×55×0.20	25×0.2	1.9	26.7	1085.7	0.641
4	4×70	14/2.52	9.1×12.5	1.1	2×60×0.20	30×0.2	2	30.9	1420.9	0.443
4	4×95	19/2.52	11.0×13.3	1.1	2×60×0.20	30×0.5	2.2	36.6	2189	0.32
4	4×120	24/2.52	12.0×17.0	1.2	2×60×0.20	30×0.5	2.4	39.7	2617.1	0.253
4	4×150	30/2.52	13.9×19.7	1.4	2×60×0.30	35×0.5	2.5	45.5	3240	0.206
4	4×185	37/2.52	15.2×21.2	1.6	2×60×0.30	35×0.5	2.7	49.7	3865.9	0.164
4	4×240	48/2.52	17.3×24.3	1.7	2×60×0.30	35×0.5	2.9	55.1	4748.9	0.125
4	4×300	61/2.52	19.5×27.9	1.8	2×60×0.30	45×0.5	3.1	60.8	5762.4	0.1
5	5×10	7/1.35	4.05	0.7	2×40×0.20	25×0.2	1.8	20.5	539.2	3.08
5	5×16	7/1.66	4.98	0.7	2×45×0.20	25×0.2	1.8	23.2	683.4	1.91
5	5×25	7/2.14	6.42	0.9	2×55×0.20	25×0.2	1.8	27.7	968.2	1.2
5	5×35	7/2.52	7.56	0.9	2×60×0.20	30×0.2	1.9	31.2	1219.1	0.868
5	5×50	10/2.52	4.8×14.2	1	2×60×0.20	25×0.2	2	29	1298.1	0.641
			8.4	1
5	5×70	14/2.52	5.7×16.8	1.1	2×60×0.20	30×0.5	2.2	34.5	2044.6	0.443
			10	1.1
5	5×95	19/2.52	6.7×19.6	1.1	2×60×0.20	30×0.5	2.3	38.3	2548.4	0.32
			11.6	1.1
5	5×120	24/2.52	7.9×21.9	1.2	2×60×0.20	35×0.5	2.5	43	3106.9	0.253
			13	1.2
5	5×150	30/2.52	8.5×24.6	1.4	2×60×0.30	35×0.5	2.7	47.8	3813.6	0.206
			14.6	1.4
5	5×185	37/2.52	9.4×27.2	1.6	2×60×0.30	35×0.5	2.9	52.6	4577.6	0.164
			16.2	1.6
5	5×240	48/2.52	10.8×31.0	1.7	2×60×0.30	45×0.5	3.1	58.6	5653.1	0.125
			18.5	1.7
5	5×300	61/2.52	12.2×34.4	1.8	2×60×0.30	45×0.5	3.3	64.4	6868.6	0.1
			20.6	1.8
4	3×16+1×10	7/1.66	4.98	0.7	2×40×0.20	25×0.2	1.8	20.7	554.4	1.91
		7/1.35	4.05	0.7
5	3×16+2×10	7/1.66	4.98	0.7	2×45×0.20	25×0.2	1.8	22.1	624.6	1.91
		7/1.35	4.05	0.7
		7/1.35	4.05	0.7
4	3×25+1×16	7/2.14	6.42	0.9	2×50×0.20	25×0.2	1.8	24.4	763.2	1.2
		7/1.66	4.98	0.7
5	3×25+2×16	7/2.14	6.42	0.9	2×55×0.20	25×0.2	1.8	25.9	852.6	1.2
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×35+1×16	7/2.52	7.56	0.9	2×55×0.20	25×0.2	1.8	26.6	905.9	0.868
		7/1.66	4.98	0.7
5	3×35+2×16	7/2.52	7.56	0.9	2×60×0.20	25×0.2	1.8	27.8	986.5	0.868
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×50+1×25	10/2.52	7.2×10.8	1	2×55×0.20	25×0.2	1.8	26.9	1004.3	0.641
		7/2.16	6	0.9
5	3×50+2×25	10/2.52	5.0×14.3	1	2×55×0.20	25×0.2	1.9	26.7	1096	0.641
		7/2.16	6	0.9
		7/2.16	6	0.9
4	3×70+1×35	14/2.52	9.0×13.0	1.1	2×60×0.20	30×0.2	2	31.9	1329.3	0.443
		7/2.52	7	0.9
5	3×70+2×35	14/2.52	6.0×16.8	1.1	2×60×0.20	30×0.2	2	30.3	1412.3	0.443
		7/2.52	7	0.9
		7/2.52	7	0.9
4	3×95+1×50	19/2.52	10.7×14.5	1.1	2×60×0.20	30×0.5	2.1	37.2	2056.7	0.32
		10/2.52	8.4	1
5	3×95+2×50	19/2.52	7.2×19.7	1.1	2×60×0.20	30×0.5	2.2	35.8	2184.6	0.32
		10/2.52	8.4	1
		10/2.52	7.1×11.5	1
4	3×120+1×70	24/2.52	11.5×17.3	1.2	2×60×0.20	30×0.5	2.3	39.9	2455.7	0.253
		14/2.52	10	1.1
5	3×120+2×70	24/2.52	8.0×22.1	1.2	2×60×0.20	30×0.5	2.4	39.9	2688.9	0.253
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×150+1×70	30/2.52	13.2×19.4	1.4	2×60×0.20	35×0.5	2.4	45	2915.7	0.206
		14/2.52	10	1.1
5	3×150+2×70	30/2.52	9.1×24.3	1.4	2×60×0.20	35×0.5	2.5	43.1	3089.8	0.206
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×185+1×95	37/2.52	15.0×22.3	1.6	2×60×0.30	35×0.5	2.6	51	3604.4	0.164
		19/2.52	11.6	1.1
5	3×185+2×95	37/2.52	10.2×27.2	1.6	2×60×0.30	35×0.5	2.7	48.7	3837.6	0.164
		19/2.52	11.6	1.1
		19/2.52	9.2×14.7	1.1
4	3×240+1×120	48/2.52	17.7×23.7	1.7	2×60×0.30	45×0.5	2.8	58.1	4456.6	0.125
		24/2.52	13	1.2
5	3×240+2×120	48/2.52	11.5×29.2	1.7	2×60×0.30	35×0.5	2.9	53.6	4688.7	0.125
		24/2.52	13	1.2
		24/2.52	9.9×16.4	1.2
4	3×300+1×150	61/2.52	19.2×28.3	1.8	2×60×0.30	45×0.5	2.9	62.3	5296.3	0.1
		30/2.52	14.6	1.4
5	3×300+2×150	61/2.52	13.0×33.2	1.8	2×60×0.30	45×0.5	3.1	59.2	5693.3	0.1
		30/2.52	14.6	1.4
		30/2.52	10.6×17.9	1.4
5	4×16+1×10	7/1.66	4.98	0.7	2×45×0.20	25×0.2	1.8	22.6	652.5	1.91
		7/1.35	4.05	0.7
5	4×25+1×16	7/2.14	6.42	0.9	2×55×0.20	25×0.2	1.8	26.8	910.7	1.2
		7/1.66	4.98	0.7
5	4×35+1×16	7/2.52	7.56	0.9	2×60×0.20	25×0.2	1.8	29.4	1095.1	0.868
		7/1.66	4.98	0.7
5	4×50+1×25	10/2.52	5.5×13.4	1	2×55×0.20	25×0.2	2	27.9	1203.8	0.641
		7/2.16	6	0.9
5	4×70+1×35	14/2.52	6.7×15.8	1.1	2×60×0.20	30×0.5	2.1	33.1	1884.6	0.443
		7/2.52	7	0.9
5	4×95+1×50	19/2.52	7.7×18.3	1.1	2×60×0.20	30×0.5	2.3	37	2372.3	0.32
		10/2.52	8.4	1
5	4×120+1×70	24/2.52	9.5×20.8	1.2	2×60×0.20	35×0.5	2.4	42.9	2939.7	0.253
		14/2.52	10	1.1
5	4×150+1×70	30/2.52	10.0×22.9	1.4	2×60×0.30	35×0.5	2.6	45.7	3482.2	0.206
		14/2.52	10	1.1
5	4×185+1×95	37/2.52	10.8×25.6	1.6	2×60×0.30	35×0.5	2.8	50.3	4198.5	0.164
		19/2.52	11.6	1.1
5	4×240+1×120	48/2.52	12.6×28.9	1.7	2×60×0.30	35×0.5	3	56	5170.9	0.125
		24/2.52	13	1.2
5	4×300+1×150	61/2.52	13.8×32.2	1.8	2×60×0.30	45×0.5	3.2	61	6256.2	0.1
		30/2.52	14.6	1.4
