Single core electric wire H05V-URK

It is suitable for power plant, daily electrical applicances, instruments and telecommuication equiment with rated voltage of 300/500V and below. Operation Characteristic 1.Rated voltage:300/500V. 2.Long-term permission working

Application

It is suitable for power plant, daily electrical applicances, instruments and telecommuication equiment with rated voltage of 300/500V and below.

Operation Characteristic

1.Rated voltage:300/500V. 2.Long-term permission working temperature of cable conductor is 70℃ 3.The minimum allowable bending radius of cable is 6 times of outer diameter of thecable.

Standard

IEC 60227 EN 50525

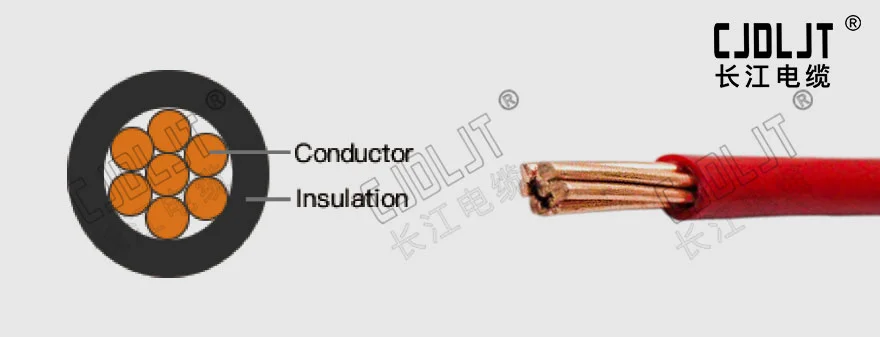

Cable Structure

Conductor: Copper (according to IEC 60228) H05V-U/60227IEC05-Class1 H05V-R-Class2 H05V-K/60227IEC06-Class5 Insulation: PVC

Specifications

H05V-U
Nominal cross sectional area Class of conductor Thickness of insulation Nominal diameter Min insulation resiatant at rated temperature
Lower limit Upper limit
mm2 class mm mm mm MΩ·km
0.5 1 0.6 1.9 2.3 0.014
0.75 1 0.6 2.1 2.5 0.013
1 1 0.6 2.2 2.7 0.011
H05V-R
Nominal cross sectional area Class of conductor Thickness of insulation Nominal diameter Min insulation resiatant at rated temperature
Lower limit Upper limit
mm2 class mm mm mm MΩ·km
0.5 2 0.6 2.0 2.4 0.014
0.75 2 0.6 2.2 2.6 0.012
1 2 0.6 2.3 2.8 0.011
H05V-K
Nominal cross sectional area Class of conductor Thickness of insulation Nominal diameter Min insulation resiatant at rated temperature
Lower limit Upper limit
mm2 class mm mm mm MΩ·km
0.5 5 0.6 2.1 2.5 0.013
0.75 5 0.6 2.2 2.7 0.011
1 5 0.6 2.4 2.8 0.01

Service

We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects. Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.

CJDL Cable Company is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core configurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.

Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
