Flexible Cable Buying Guide: Specifications, Standards & Selection
Selecting the right flexible cable requires matching specific electrical, thermal, and mechanical properties to your operating environment. This guide breaks down five industry-standard flexible cables—318-Y (H05VV-F), H05VV5-F (Oil-Resistant), 2491X (H05V-K / H07V-K), H05Z1Z1-F (LSZH), and Tri-Rated Cable (BS 6231 / UL 1015 / CSA C22.2)—to help you determine the exact conductor construction, insulation material, and global compliance for your application.
Direct Technical Answer: Comparing Flexible Cable Applications
Flexible cables utilize fine-stranded Class 5 flexible copper conductors (IEC 60228[1]) to withstand continuous vibration, flexing, and tight-radius installation. While standard thermoplastic PVC cables like 318-Y suit general indoor domestic and light commercial appliances under medium mechanical stress, specialized variants address environmental hazards. H05VV5-F incorporates an oil-resistant PVC sheath for industrial machinery. 2491X provides single-core panel wiring. H05Z1Z1-F uses Low Smoke Zero Halogen (LSZH) compounds for public safety. Tri-Rated Cable features triple international certification (BS 6231[2] / UL 1015[3] / CSA C22.2[4]) with an elevated 105°C temperature rating for switchgear and control cabinets globally.
Technical Parameter Comparison Matrix
| Cable Type | Standard / Harmonization | Rated Voltage (U0/U) | Max Operating Temp | Insulation / Sheath | Primary Application |
| 318-Y | BS EN 50525-2-11 / H05VV-F | 300/500V | 70°C | PVC / PVC | Household appliances, office equipment |
| H05VV5-F | BS EN 50525-2-51 | 300/500V | 70°C | PVC / Oil-Resistant PVC | CNC machinery, plant engineering, control lines |
| 2491X | BS EN 50525-2-31 / H05V-K / H07V-K | 300/500V (<1 mm²) 450/750V (≥1.5 mm²) | 70°C | PVC (Single Core) | Internal panel wiring, conduit, lighting enclosures |
| H05Z1Z1-F | BS EN 50525-3-11 | 300/500V | 70°C | Thermoplastic LSZH / LSZH | Public buildings, hospitals, flame-retardant zones |
| Tri-Rated | BS 6231 CK / UL 1015 / CSA C22.2 | 600V (UL/CSA) 600/1000V (BS) | 105°C (UL/CSA) 90°C (BS) | Heat-Resistant PVC (HR-PVC) | Switchgear, transformer cabinets, control panels |
Detailed Technical Profiles & Construction Breakdown

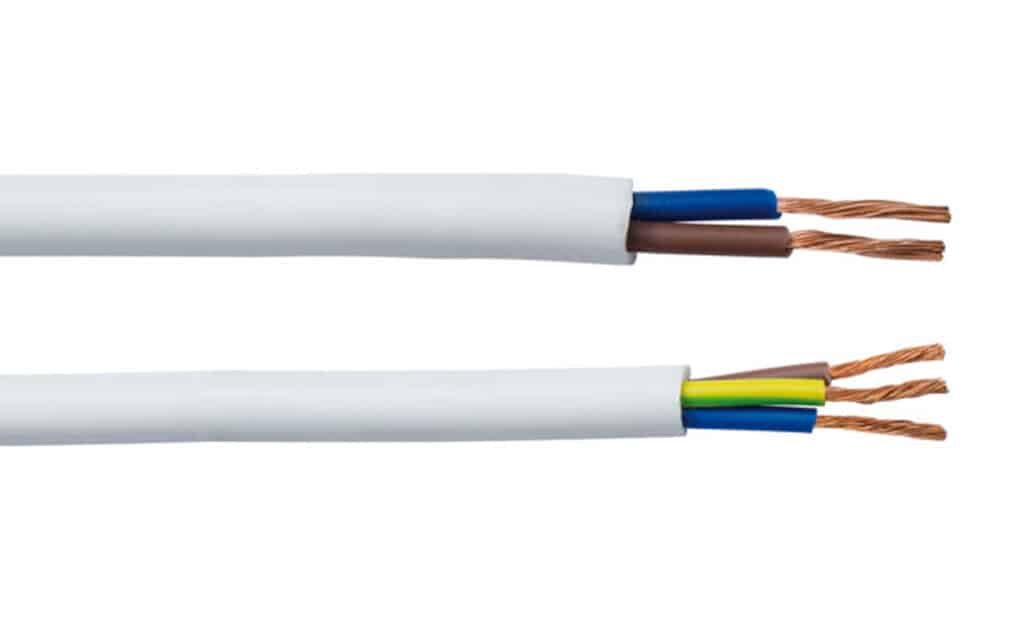

318-Y Cable (H05VV-F)
318-Y is a medium-duty multi-core flexible cable engineered for low-voltage power supply connections in domestic, office, and light industrial settings.
- Conductor: Class 5 flexible plain annealed copper wire complying with IEC 60228[1] / BS EN 60228.
- Insulation: Thermoplastic PVC Type TI 2 to BS EN 50363-3.
- Outer Sheath: Thermoplastic PVC Type TM 2 to BS EN 50363-4-1.
- Flame Retardancy: Tested to IEC 60332-1-2.
- Limitations: Unsuitable for outdoor use under direct UV exposure, extreme cold below -5°C, or contact with oils and industrial lubricants.
H05VV5-F Cable (Oil-Resistant Control Cable)
H05VV5-F is specialized for industrial automation, conveyor systems, and machine tool production lines where exposure to mineral oils and cutting fluids is expected.
- Oil Resistance: Sheath compound meets EN 50363-4-1 oil resistance criteria.
- Core Identification: Black cores with white numerical printing plus a green/yellow earth core (in 3-core configurations and above).
- Screening Option: Available as an armored or screened variant (H05VVC46-F) for Electromagnetic Interference (EMI) protection.
- Installation: Intended for fixed installation or flexible use with free movement without tensile stress.

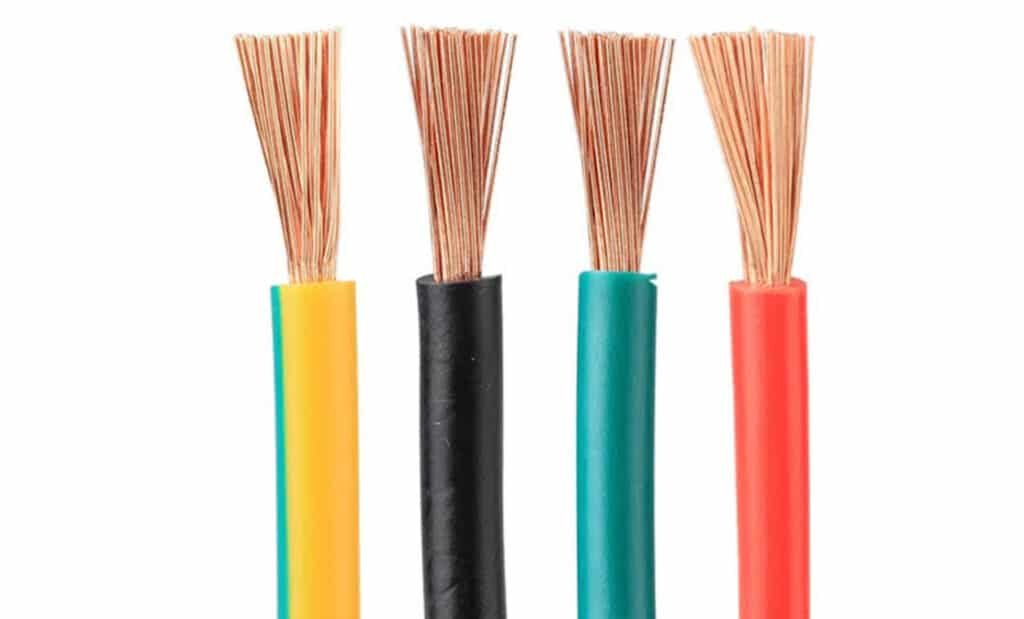

2491X Cable (H05V-K / H07V-K Single-Core Flex)
2491X is an unsheathed single-core flexible cable designed for internal interconnecting wiring inside control cabinets, power distribution boards, and closed conduit pathways.
- Harmonization Breakdown:
- H05V-K: 0.5 mm² to 1.0 mm² rated at 300/500V.
- H07V-K: 1.5 mm² to 240 mm² rated at 450/750V.
- Bending Radius: 4 × Overall Diameter (OD) for fixed installation; 6 × OD for flexing.
- Key Use Case: High-density cabinet layouts requiring tight routing radii where rigid solid-core wire cannot be routed efficiently.
H05Z1Z1-F Cable (Low Smoke Zero Halogen)
H05Z1Z1-F replaces traditional PVC insulation and jacketing with halogen-free thermoplastic materials to minimize secondary fire hazards.
- Safety Compliance:
- Zero Halogen Emission: IEC 60754-1 and IEC 60754-2 (pH >4.3, Conductivity <10 µS/mm).
- Low Smoke Density: IEC 61034-2 (Transmittance >60%).
- Application Scope: Mandatory in high-density human occupancy zones including airports, hospitals, rail terminals, and data centers.
- Mechanical Strength: Identical duty rating to 318-Y (H05VV-F) under equivalent ambient operating conditions.
Tri-Rated Cable (Panel & Control Board Wire)
Tri-Rated Cable (also known as Panel Wire) meets three distinct international standards on a single conductor, eliminating the need to stock separate wires for European, North American, and Asian markets.
- Triple Certification:
- Construction: High-temperature HR-PVC insulation over fine-stranded annealed copper.
- Advantage: Higher current-carrying capacity due to its elevated 105°C thermal threshold compared to standard 70°C 2491X wire.
CJDL CABLE Engineering Insight: There is no one-size-fits-all flexible cable — the right choice follows the operating environment. Specify 318-Y for general indoor duty, H05VV5-F where oils and cutting fluids are present, and H05Z1Z1-F in high-occupancy public zones; for cabinet wiring, tri-rated cable’s 105 °C rating adds headroom over 2491X. All CJDL CABLE flexible cables are manufactured and routinely tested to the BS EN 50525 series and IEC 60332-1-2.
References
[1] Wikipedia. IEC 60228 [EB/OL]. 2026-09-07.
[2] BSI Group. BS 6231:2006 Electric cables. Single core PVC insulated cables of rated voltage 600/1000 V for switchgear and controlgear wiring [EB/OL]. 2026-09-07.
[3] UL Solutions. UL 1015 Hook-up Wire Standard [EB/OL]. 2026-09-07.
[4] CSA Group. CSA C22.2 NO. 210-15 (R2020) Appliance wiring material products [EB/OL]. 2026-09-07.
