Replacing Bare Overhead Conductors with LV ABC 1kV Cable in Rural Electrification

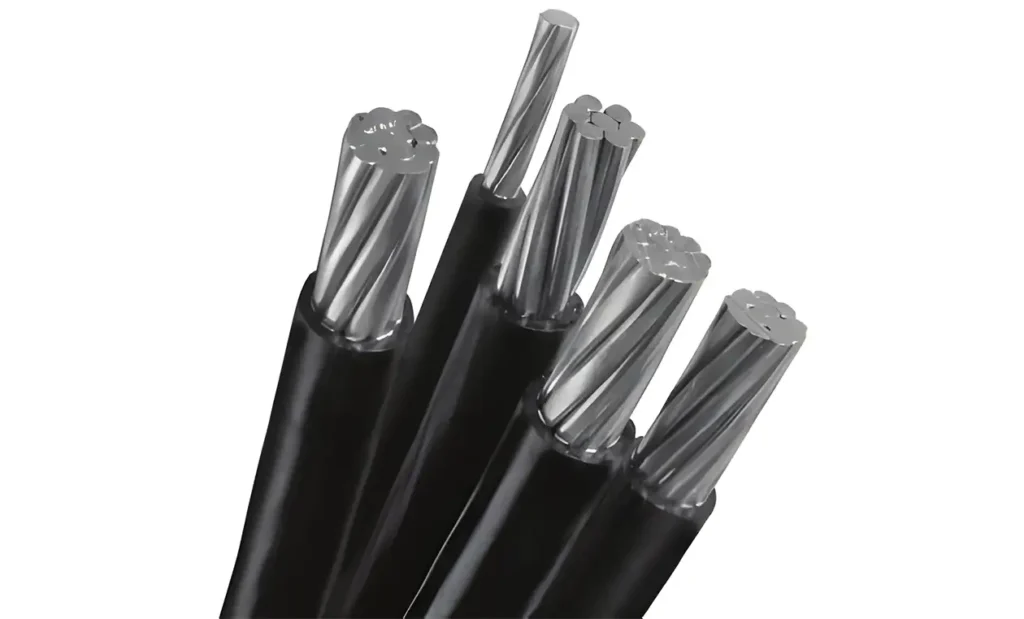

Yes, Low Voltage Aerial Bundled Cables (LV ABC 0.6/1kV) can fully replace bare overhead conductors (such as AAC or ACSR) in rural distribution networks. Manufactured to standards like IEC 60502-1, HD 626, and NFC 33-209, 1kV LV ABC utilizes XLPE-insulated aluminum phase conductors twisted around a neutral messenger core. This insulated design eliminates phase-to-phase flashovers caused by wind-induced clash or tree contact, drastically reduces non-technical losses (power theft via direct hooking), and significantly decreases maintenance downtime in heavily vegetated or high-wind rural corridors.
Technical Parameter Comparison Matrix
The table below contrasts the mechanical, electrical, and operational specifications of 0.6/1kV XLPE Insulated LV ABC against conventional Bare Aluminum Conductors (AAC/ACSR) for rural overhead distribution.
| Technical Parameter | 0.6/1kV XLPE LV ABC (Self-Supporting / Neutral Messenger) | Bare Conductors (AAC / ACSR) |
| Applicable Standards | IEC 60502-1, HD 626, NFC 33-209, BS 7870-5 | IEC 61089, BS 215, ASTM B231 / B232 |
| Rated Voltage (U₀/U) | 0.6/1.0 kV | Uninsulated (Air Clearance Dependent) |
| Conductor Material | Stranded Aluminum (Class 2), Hard-Drawn | All Aluminum (AAC) / Aluminum Conductor Steel Reinforced (ACSR) |
| Insulation Material | Carbon-Black Pigmented XLPE (Cross-linked Polyethylene) | None (Bare) |
| Max. Operating Temperature | 90°C (Continuous) / 250°C (Short Circuit ≤5ₛ) | 75°C – 80°C (Continuous) / 160°C – 200°C (Short Circuit) |
| Phase-to-Phase Clearance | Zero clearance required (Insulated cores bundled) | 0.3m to 1.0m (Requires cross-arms and pin/shackle insulators) |
| Fault Vulnerability | Very Low (Immune to branch clash, wildlife, and salt fog) | High (Prone to clash, clashing arcs, and vegetation contact) |
| Non-Technical Losses (Theft) | Very Low (Requires specialized Insulation Piercing Connectors) | Very High (Vulnerable to bare wire tapping/hooking) |
| Right-of-Way (RoW) Width | Narrow (Minimal tree clearance needed) | Wide (Requires extensive vegetation clearing) |
Environmental & Operational Reliability Analysis
Anti-Theft Performance & Non-Technical Loss Prevention
Bare overhead lines in rural circuits are susceptible to illegal direct-hooking tapping. LV ABC features 90°C XLPE insulation extruded over each individual phase conductor, fully insulating the live components. Tapping into an ABC line requires specialized shear-bolt IPCs, making unequipped or unauthorized physical connection virtually impossible and dramatically cutting non-technical grid losses.
Vegetation Clearance & Right-of-Way (RoW) Optimization
Because phase conductors are insulated and twisted tightly together, physical contact with tree branches does not cause phase-to-phase short circuits or ground faults. Rural utilities can reduce tree-trimming maintenance cycles from 12–18 months down to 4–5 years, lowering long-term Operational Expenditure (OpEx) while minimizing deforestation along power corridors.
