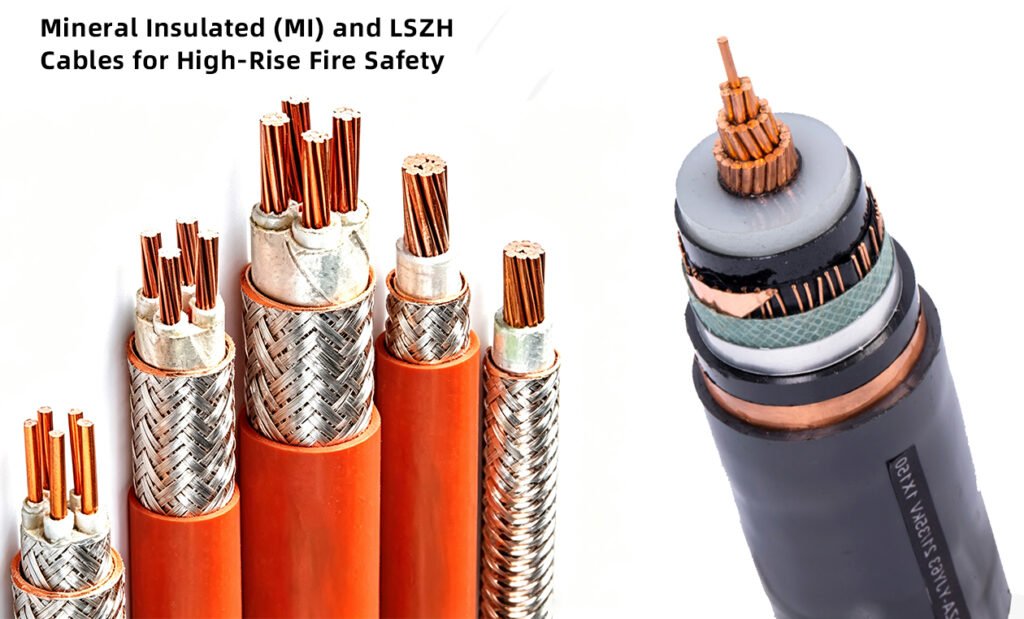

Mineral Insulated (MI) and LSZH Cables for High-Rise Fire Safety
For commercial and residential high-rise buildings, Mineral Insulated Copper Clad (MICC) cables (complying with BS 8434-2 and IEC 60702) provide the ultimate fire-survival rating, maintaining circuit integrity for over 3 hours at temperatures exceeding 950°C. For general distribution where extreme rigidity is impractical, Low Smoke Zero Halogen (LSZH) insulated cables with mica tape barriers (classified as IEC 60331 compliant) are the industry standard. These cables utilize cross-linked polyethylene (XLPE) insulation, an inorganic fire-resistant barrier, and an LSZH sheath to prevent the emission of toxic halogens and dense black smoke during thermal decomposition.
Technical Comparison of Fire-Safe Cables
The table below contrasts the mechanical, thermal, and chemical specifications of the three primary cable architectures utilized in high-rise structural safety.
| Technical Parameter | Mineral Insulated (MICC) | LSZH with Mica Tape (Fire Resistant) | Standard LSZH (Flame Retardant) |
| Industry Standards | IEC 60702, BS EN 50200 (Class PH120) | IEC 60331, BS 6387 (Cat C/W/Z) | IEC 60332-1-2, IEC 60754-1/2 |
| Conductor Material | Plain Annealed Copper | Plain Annealed Copper | Plain Annealed Copper |
| Insulation System | Magnesium Oxide (MgO) | Mica Glass Tape + XLPE | XLPE or LSZH Compound |
| Sheath Material | Seamless Copper Tube (Optional LSF) | LSZH Compound (polyolefin-based) | LSZH Compound |
| Max. Operating Temp. | 250°C (Continuous) | 90°C | 90°C |
| Fire Survival Limit | 950°C for 180 mins (with water/mechanical shock) | 750°C to 950°C for 180 mins | No survival rating (Self-extinguishing only) |
| Acid Gas Emission | 0% (Halogen-Free) | < 0.5% Halogen Acid Gas | < 0.5% Halogen Acid Gas |
| Smoke Transmittance | Minimum 90% light transmittance | Minimum 60% light transmittance | Minimum 60% light transmittance |
Key Fire-Safe Insulation Technologies

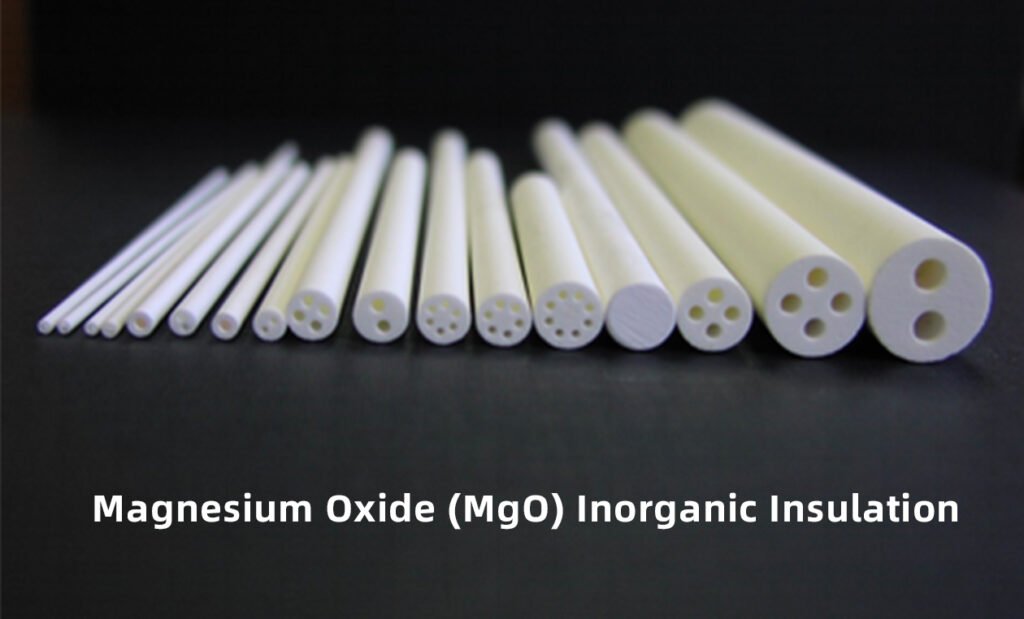

Magnesium Oxide (MgO) Inorganic Insulation
In Magnesium Oxide insulated cables, no organic polymers are present. The highly compressed MgO powder serves as an excellent electrical insulator while possessing exceptional thermal conductivity. Because it lacks carbon compounds, it cannot burn, propagate flame, generate smoke, or release toxic gases.
Mica-Tape Barrier with XLPE Insulation
This hybrid approach pairs the electrical efficiency of Cross-linked Polyethylene (XLPE) with the thermal endurance of Phlogopite Mica tape. During a fire, the XLPE layer volatilizes, but the inorganic mica tape remains intact around the annealed copper conductor, preventing phase-to-phase and phase-to-earth short circuits under direct flame exposure up to 950°C.
