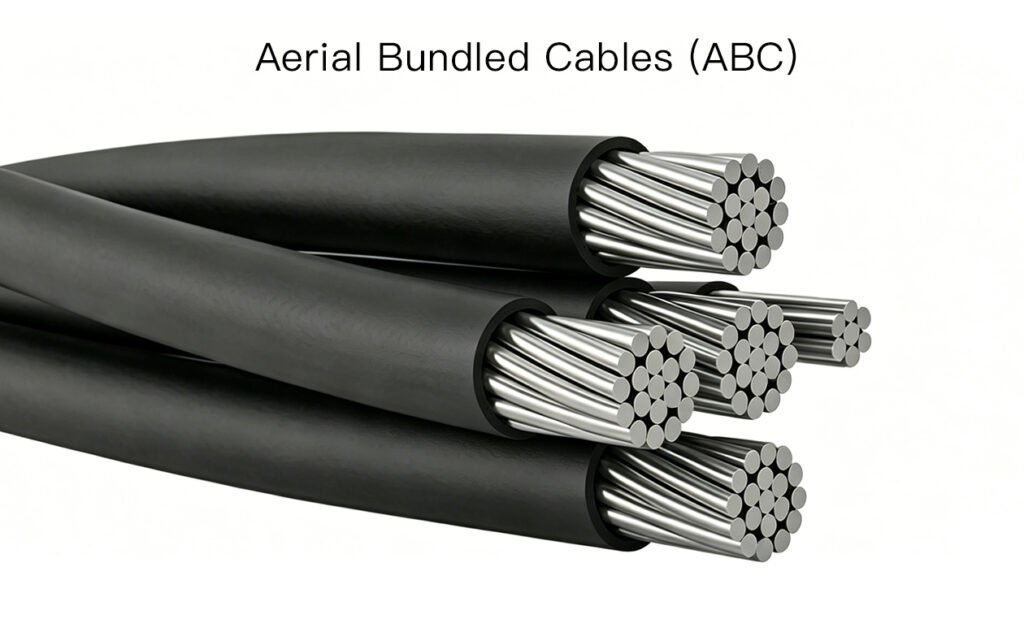

Aerial Bundled Cables (ABC) are primarily used for overhead electric power distribution in low-voltage (LV) and medium-voltage (MV) systems, typically ranging from 0.6/1 kV to 33 kV. Governed by international standards such as IEC 60502, NF C 33-209, and AS/NZS 3560, ABC systems replace traditional bare copper or aluminum overhead conductors. Their core application is to provide safe, reliable power distribution in rural, residential, and urban areas where space is constrained, forestation poses a risk of tree-touch short circuits, or high safety margins against electrocution and power theft are required.
Technical Parameter Matrix: ABC vs. Bare Overhead Conductors
The following structured data matrix outlines the technical performance metrics of standard Low-Voltage XLPE Insulated Aerial Bundled Cables compared to conventional bare conductor systems.
| Technical Parameter | LV ABC (XLPE Insulated) | Bare Overhead Conductors (ACSR/AAC) |
| Rated Voltage () | 0.6/1 kV up to 12/20 kV | Up to EHV levels (Uninsulated) |
| Conductor Material | Hard-drawn Aluminum or Annealed Copper | ACSR (Aluminum Conductor Steel Reinforced) |
| Insulation Material | Cross-linked Polyethylene (XLPE) or Black PVC | None (Air insulated) |
| Max. Operating Temperature | 90℃ (XLPE) / 70℃ (PVC) | 75℃ to 90℃ (Design dependent) |
| Short-Circuit Temperature | 250℃ (Max. 5 seconds) | 200℃ |
| Bending Radius | Not applicable | |
| Power Theft Resistance | High (Insulated and bundled configuration) | Extremely Low (Vulnerable to direct tapping) |
| Phase-to-Phase Clearance | Minimal (Bundle configuration reduces right-of-way) | Large (Requires wide cross-arms and spacing) |
Core Applications and Environmental Scenarios
Urban and High-Density Residential Distribution

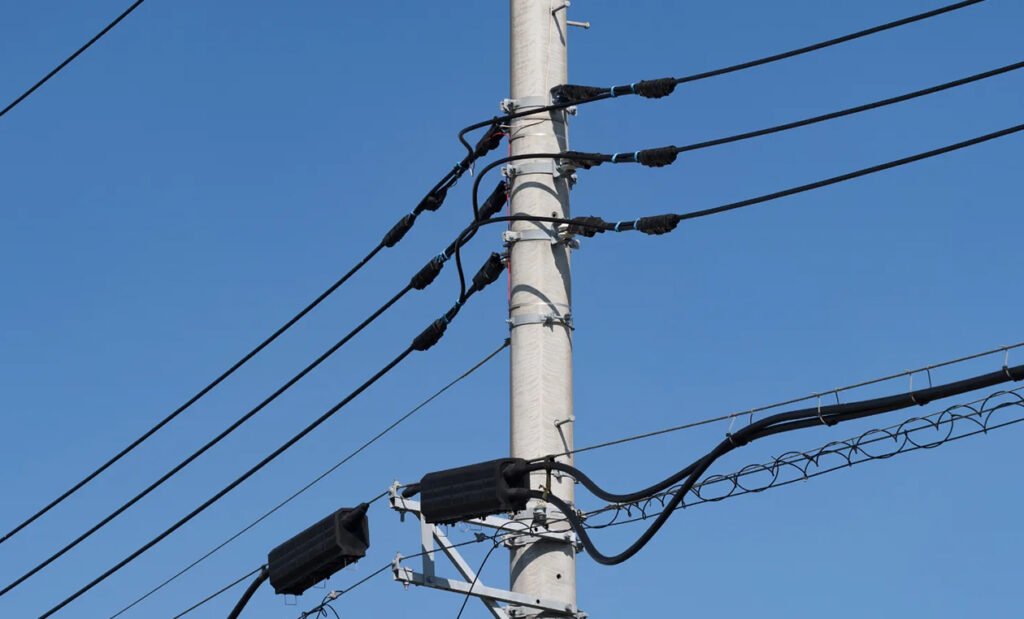

In congested municipal corridors, ABC systems solve the issue of limited Right-of-Way (RoW). Because the phase conductors are fully insulated with UV-stabilized XLPE, they can be mounted with minimal clearances to buildings, balconies, and existing telecommunication infrastructure without risking flashovers or phase-to-earth faults.
Forested, Wooded, and High-Wind Zones
Traditional bare wires frequently short-circuit when tree branches blow into the lines, causing bushfires or localized blackouts. Flame Retardant and tracking-resistant ABC insulation eliminates intermittent faults caused by transient contact with vegetation, significantly lowering tree-trimming maintenance costs for utilities.
Power Theft Mitigation in Public Grids
Uninsulated overhead lines are highly vulnerable to unauthorized direct hooking. Aerial Bundled Cables deter illegal tapping due to their insulated, tightly twisted configuration. Utilizing specialized insulation-piercing connectors makes unauthorized live-line connections highly visible and technically difficult to execute.
