Essential Power Cable Types for Industrial Plant Power Distribution
Industrial plant power distribution requires specialized cable selection based on voltage level, mechanical stress, ambient operating conditions, and fire safety compliance. Primary power feeders utilize Medium Voltage XLPE insulated cables (6 kV to 35 kV) manufactured to IEC 60502-2 for incoming substation feeds. Low-voltage internal distribution relies on 0.6/1 kV XLPE or PVC insulated cables compliant with IEC 60502-1 or BS 5467. Where high mechanical loads, direct burial, or cable tray routing occur, Steel Wire Armored (SWA) or Steel Tape Armored (STA) configurations are mandatory. For enclosed spaces or critical process zones, Low Smoke Zero Halogen (LSZH) outer sheathing is required to mitigate toxic gas emission during fire events.
Technical Comparison Matrix for Industrial Cable Selection
The following matrix outlines standard industrial power cable specifications, construction profiles, and primary deployment environments:
| Cable Category | Rated Voltage (U0/U) | Conductor & Insulation | Mechanical Armor / Sheath | Standard Compliance | Primary Application Scenario |
| MV Primary Feeder | 6/10 kV to 18/30 kV | Class 2 Stranded Annealed Copper / XLPE | Copper Tape Screen + SWA / PVC or PE | IEC 60502-2, VDE 0276 | Main substation to secondary distribution transformers |
| LV Armored Power | 0.6/1 kV | Stranded Copper or Aluminum / XLPE | Galvanized Steel Wire Armor (SWA) / PVC | IEC 60502-1, BS 5467 | Underground direct burial, exposed cable trays, high-impact motor control centers (MCC) |
| LV Flame Retardant (LSZH) | 0.6/1 kV | Plain Annealed Copper / XLPE or EPR | Non-Armored / LSZH (ST8 compound) | IEC 60332-3, IEC 60754, IEC 61034 | Confined plant areas, control rooms, high-occupancy industrial facilities |
| Flexible Rubber Cable | 450/750 V or 0.6/1 kV | Fine Wire Flexible Copper (Class 5) / EPR | Heavy Duty Chlorosulfonated PE / Rubber | IEC 60245, BS 7919 | Mobile industrial equipment, gantry cranes, temporary heavy machinery power |
Core Cable Types by Distribution Zone

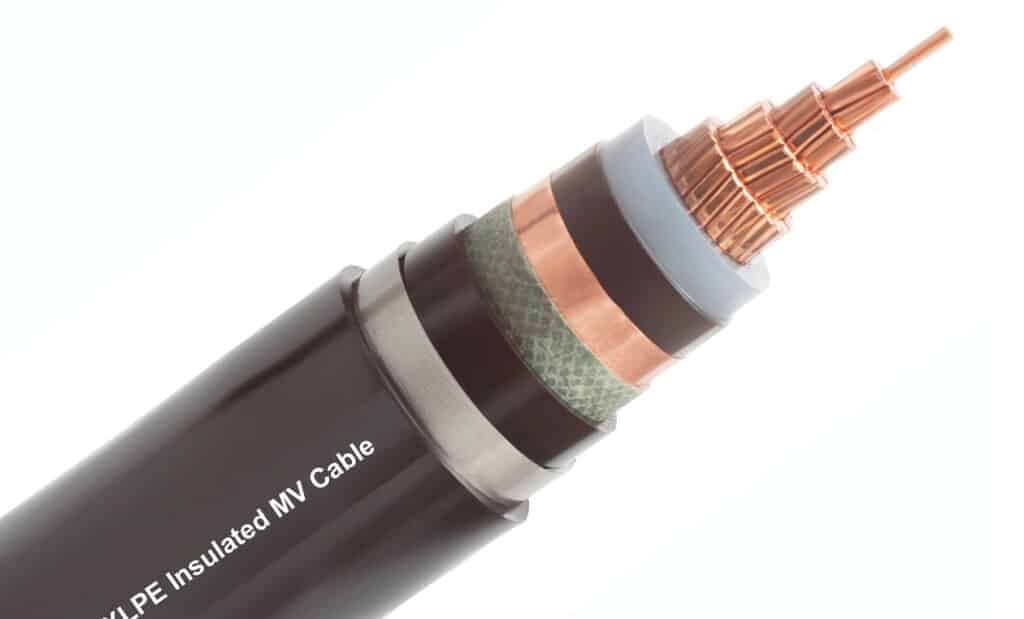

1. Medium Voltage Distribution (6 kV to 33 kV)
- Conductor: Plain stranded annealed copper or aluminum (Class 2 per IEC 60228).
- Insulation System: Triple extruded dry-cured XLPE with bonded conductor and insulation screen.
- Shielding: Metallic screen using copper tapes or copper wires to ensure uniform radial electric stress distribution.
- Sheath: HDPE or PVC with termite- and UV-resistant additives for harsh industrial environments.

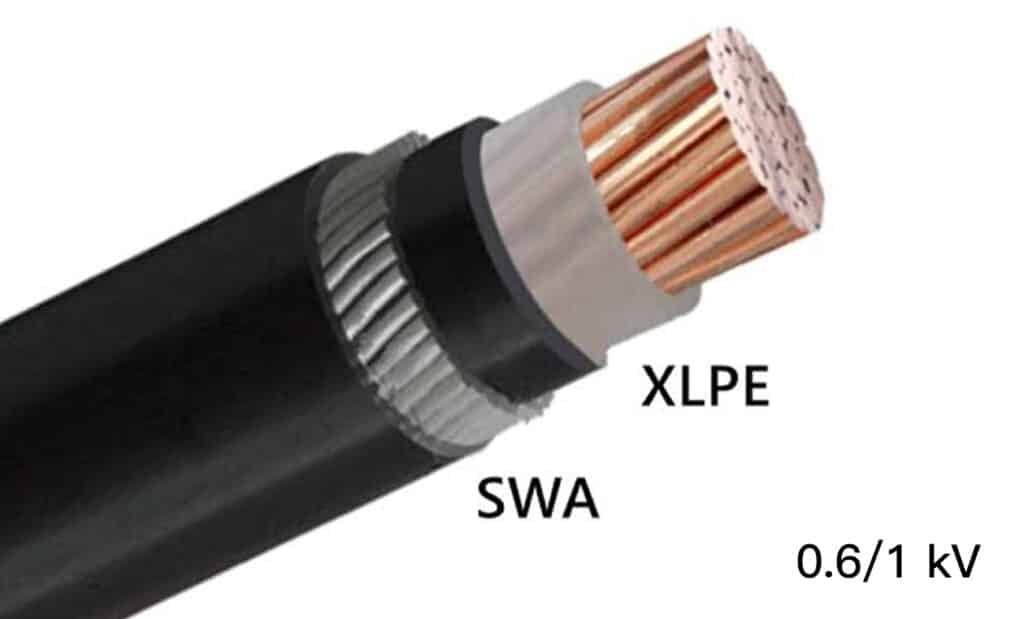

2. Low Voltage Secondary Feeders (0.6/1 kV)
- XLPE/SWA/PVC Construction: Ideal for heavy-duty industrial circuits delivering continuous operating conductor temperatures up to 90°C.
- Aluminum vs. Copper: Copper is preferred for compact tray installations and high-vibration equipment connection points; Class 2 Aluminum conductors serve long-distance main trunking runs to optimize cost.
3. Critical & Emergency Power Circuits
- Fire Resistant (MICA Tape Barrier): Tested under BS 6387 Category CWZ or IEC 60331 to maintain circuit integrity at temperatures up to 950°C for 3 hours.
- LSZH Sheathing: Zero halogen emission preventing corrosive acid gas damage to delicate automation PLC panels during combustion.
